concave surface

FUSION

Fusion Perforated or Non-Perforated Ceiling & Wall Panels

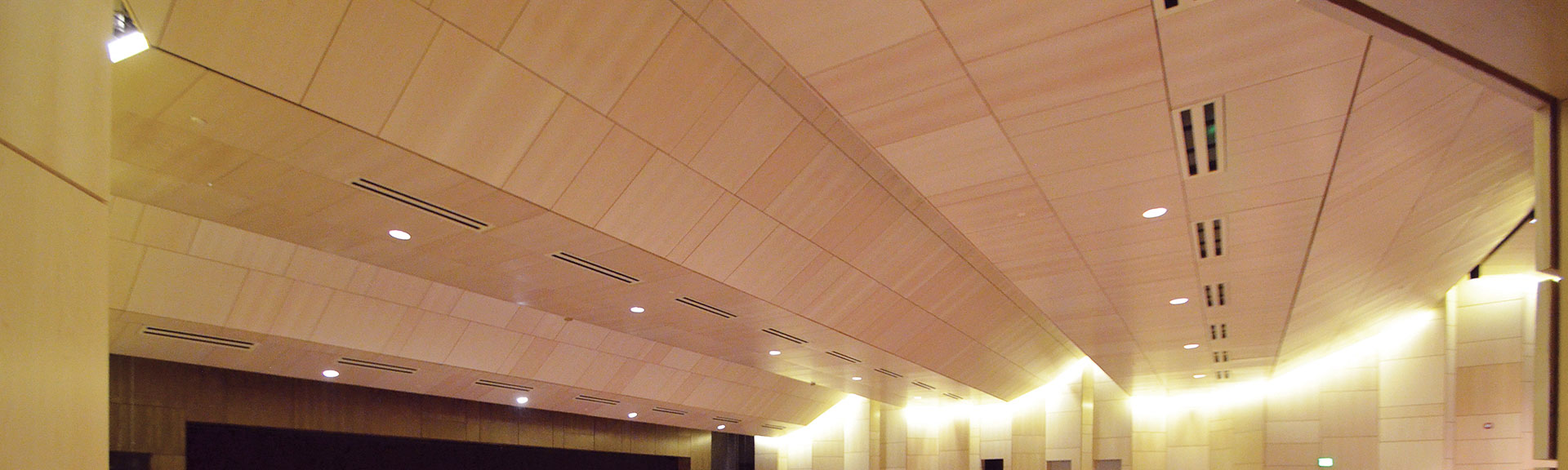

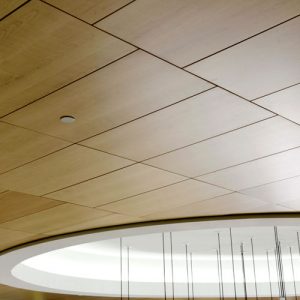

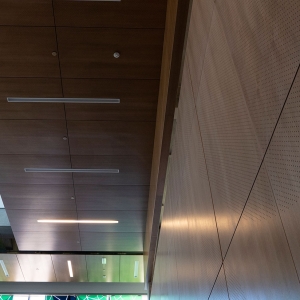

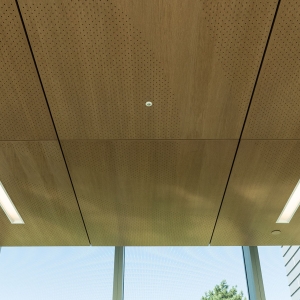

Fusion acoustic ceiling and wall panels feature wood veneer face, either in flat panels or with a variety of perforation options. Standard perforations are available in 4mm, 6mm, and 8mm diameter holes spaced 16mm or 32mm on center in both square and diamond patterns. Custom diameter, spacing, and patterns are available, as well as slotted designs. For projects requiring sound absorption, acoustical backer may be installed above Fusion ceiling or behind Fusion wall panels.

If ordering quantities less than 500 sq.ft. please call 1.888.258.4637 for availability.

Features

Available in wood veneer in the species shown below*
Standard perforations in 4mm, 6mm, and 8mm diameter
Slotted and custom perforations available
Perforation spacing: 16mm and 32mm O.C., typical square or diamond pattern, or slotted patterns
FSC available
May contribute LEED® projects
Finishes: Clear lacquer top coat or stained to match
Touch-up finish available for field application
Available core materials are:
Class A Fire Rated Particle Board
Class A Fire Rated MDF
Acoustically absorptive when perforated – NRC varies based on the hole pattern
Soundtex applied to back of perforated panels for acoustical absorption
Optional features for sound control: Acoustical backer available in 1″ and 2″

3/4″ thickness 2′ x 2′, 2 x 4′, 2′ x 6′,
(Nominal) 2′ x 8′
Available in custom sizes up to 4′ x 8′

Ceilings: Lay-in or tegular lay-in; torsion spring
Walls: Z-clip / Z-bar

Available Options

Panel

fusion layin panel

Panel For ceilings and walls

• Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
• Panels are custom programmed to have a uniform margin around the perimeter of the panel
• Custom sizes available to fit irregular installations

Resources

Lay In

Lay In

• Lays in to HD 15/16” T-bar grid for 100% accessibility
fusion lay in panel technical drawing by ASI Architectural

Resources

Tegular Lay in

Common Wood Species

Veneer pricing varies from one species to another. Please request pricing for a specific veneer.

Ash

MAPLE

BEECH

WALNUT

Red Oak

White Oak

Hickory

CHERRY

NATURAL BAMBOO

CARAMELIZED BAMBOO

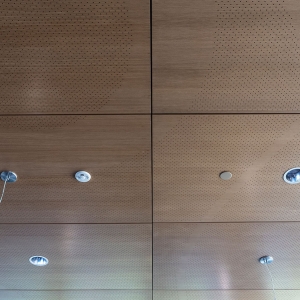

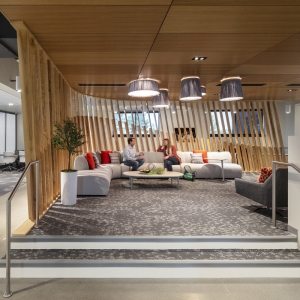

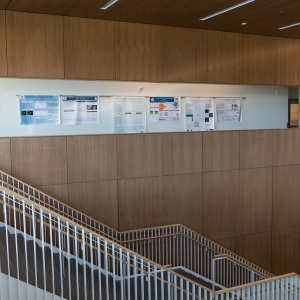

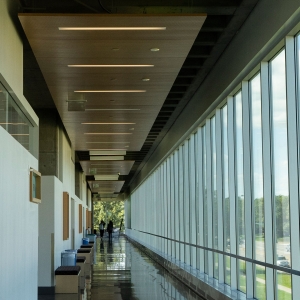

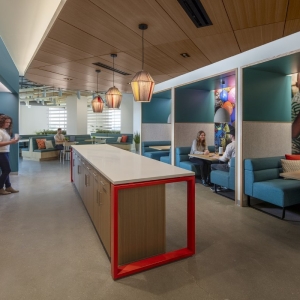

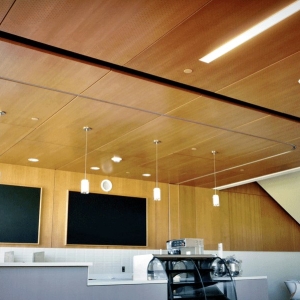

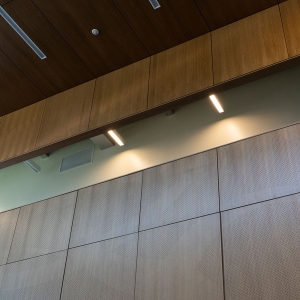

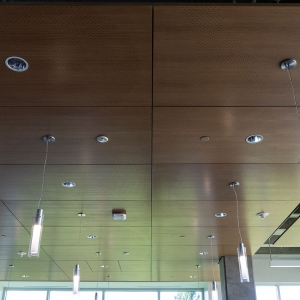

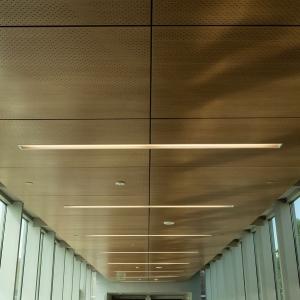

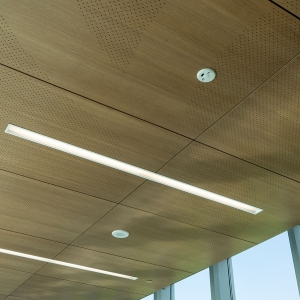

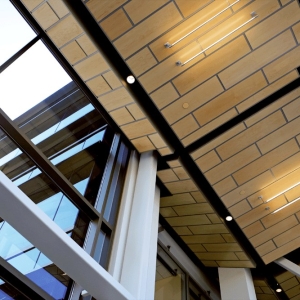

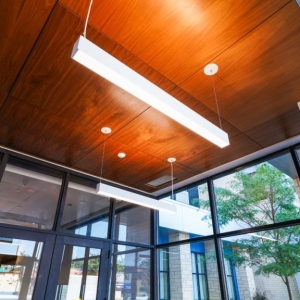

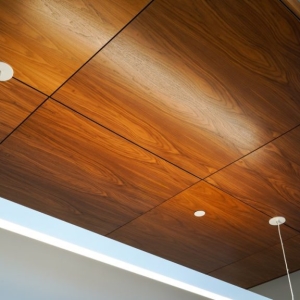

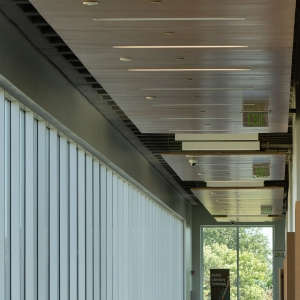

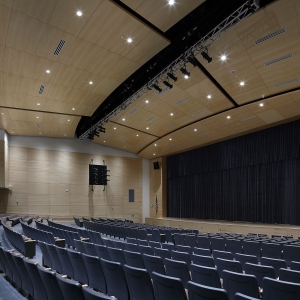

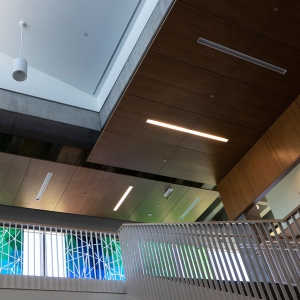

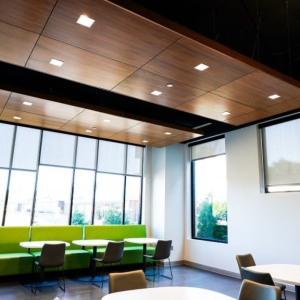

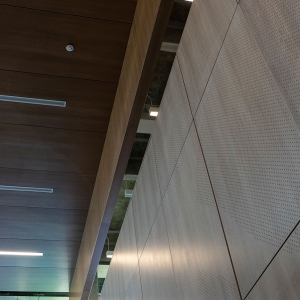

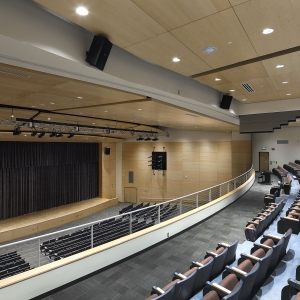

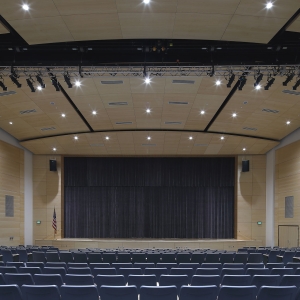

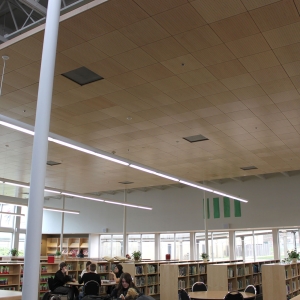

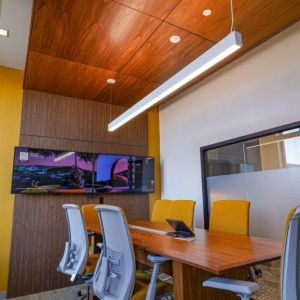

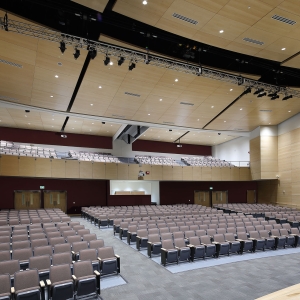

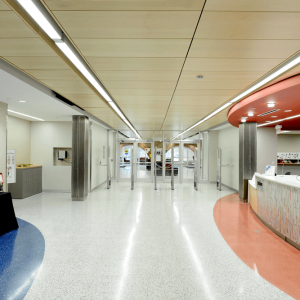

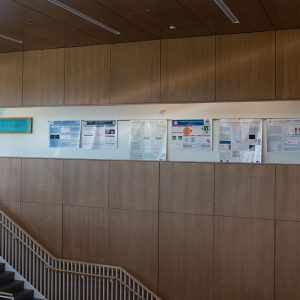

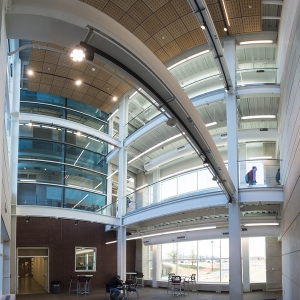

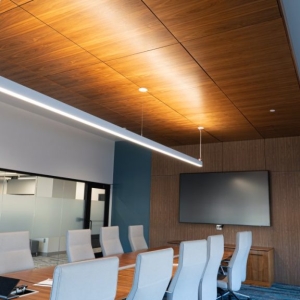

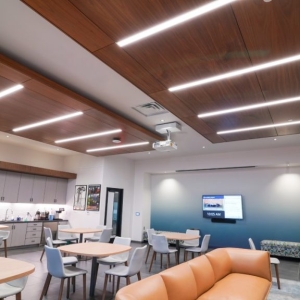

Gallery
