Audition Panels or Planks for Ceilings & Walls
Audition acoustical wood panels and planks feature a wood veneer face and are available for ceiling and wall systems. Our exclusive engineering provides a monolithic linear appearance with the benefits of acoustical absorption. For added sound control, acoustical backers may be used. The result is superior quality, high performance, stylish acoustical panels and Tongue & Groove (T&G) planks that allow for easy field cutting, and are simple to install using the provided clips.
If ordering quantities less than 500 sq.ft. please call 1.888.258.4637 for availability.
Features
Available in wood veneer in the species shown below*
Audition 8 (8mm kerf spacing on-center)

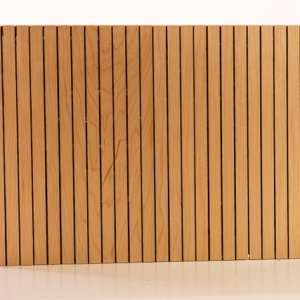

Audition 16 (16mm kerf spacing on-center)
Audition 32 (32mm kerf spacing on-center)
Back perforated in a diamond pattern

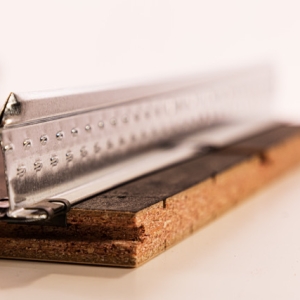

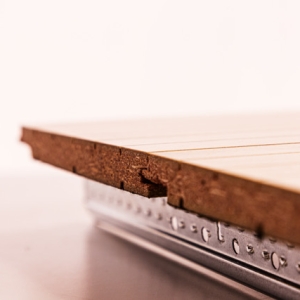

Planks are Tongue & Groove with a face kerf full length
Panels have a kerf face with an unkerfed perimeter margin
FSC available
May contribute to LEED® projects
FINISHES: Lacquer top coat or stained to match
Available in wall or ceiling panels or planks
Available core materials are:
Class A Fire Rated Particle Board
Class A Fire Rated MDF
NRC varies based on kerf spacing
Soundtex applied to back for acoustical absorption
Optional features for sound control:
Acoustical backer available in 1″ and 2″
Planks 3/4″ x 7-1/2″ x 96″/120″
Panels 3/4” x 24″ x 48″ (nominal)
custom sizes available

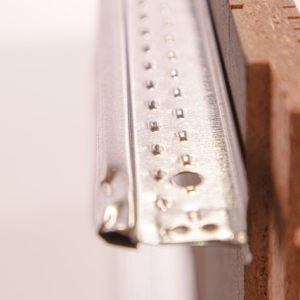

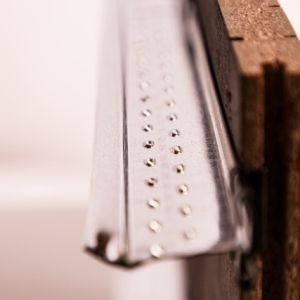

Plank: T&G grid clip, T&G direct attach clip

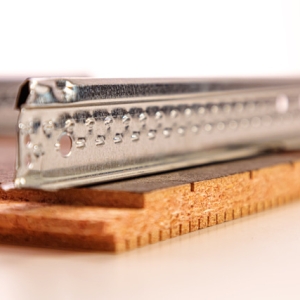

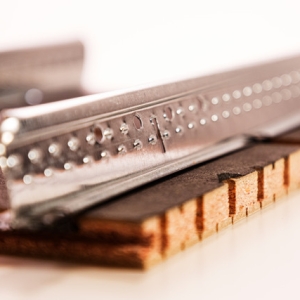

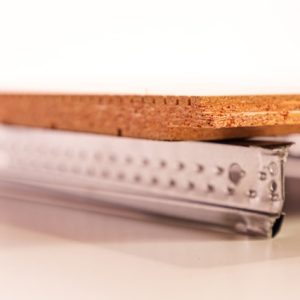

Panel: Z-bar/Z-clip, torsion spring
Available options
Panel
Panel

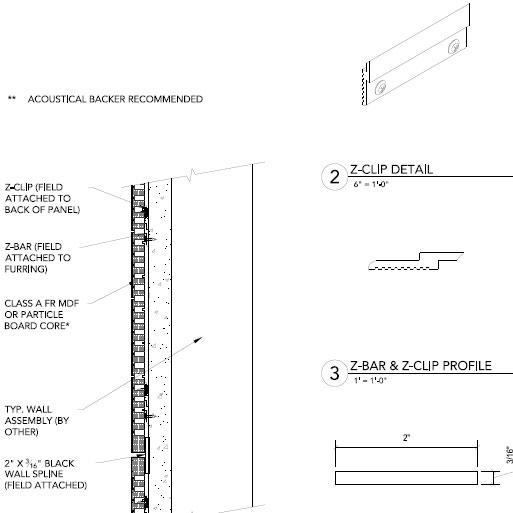

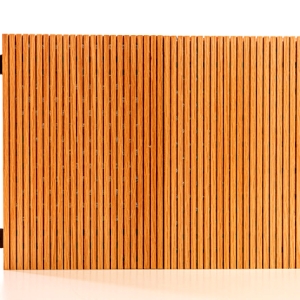

Audition Panel for Ceilings and Walls
• Ceiling Panels: Attach to HD Grid

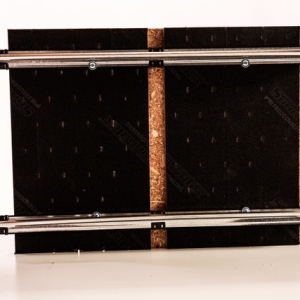

• Wall Panels: Z-Bar/Z-Clip

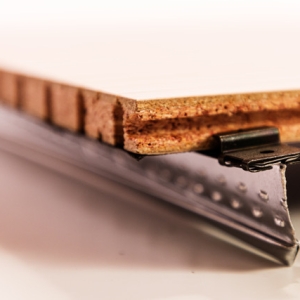

• Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
• Panels are custom programmed to have a uniform margin around the perimeter of the panel
• Custom sizes available to fit irregular installations
Resources
Plank
Plank

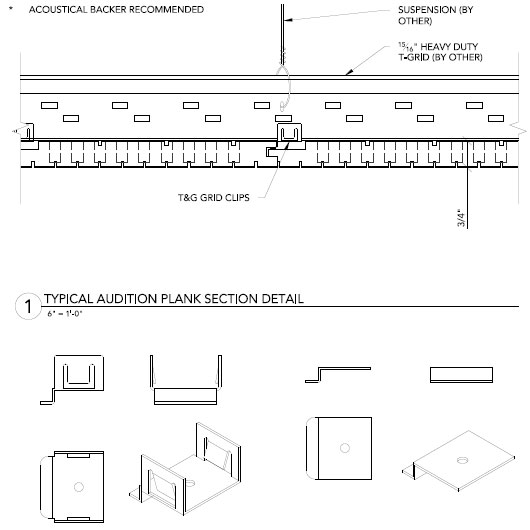

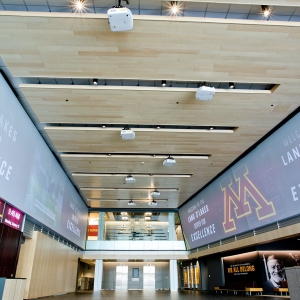

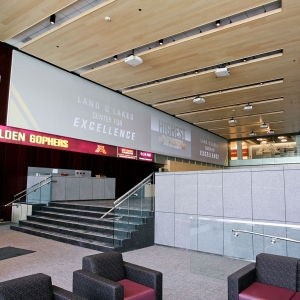

Audition Planks for Ceilings and Walls
• Planks are field cut to fit
• Planks provide a monolithic appearance with staggered end joints
Resources
Installation Instructions
Audition Plank Installation Instructions – Tongue and Groove
Standard Details
Common Wood Species
Veneer pricing varies from one species to another. Please request pricing for a specific veneer.
