Strandtec
If ordering quantities less than 500 sq.ft. please call 1.888.258.4637 for availability.
Features
- APPEARANCE & COLOR
- CORE OPTIONS
- ACOUSTICAL PERFORMANCE
- SIZES
- MOUNTING OPTIONS
- APPLICATIONS
- DETAILED SIZES
- FIRE RATING
- LIGHT REFLECTANCE
- WEIGHT
- R-VALUE
Manufactured from natural products
Fire-resistant
Mechanical fasteners
An economical alternative to fiberglass, foam, polystyrene & rock wool

Standard Core
Our standard StrandTec core is versatile, offers good performance value, and comes in all three thickness options (1″, 1-3/8″, 2″).

FSC Core
1″ thickness only
Our FSC core is made from FSC certified sustainably harvested wood fibers, making it eligible for an additional LEED credit while still boasting the same performance as our standard core.

MICROSTRAND Core
1″ thickness only
Our microstrand core is specially engineered with thinner wood fibers that yield a finer surface finish and superior acoustic absorption over our standard core.
StrandTec Acoustic Testing Chart
StrandTec Panel Acoustical Performance
NRC | Mount | |||||||
Panel Thickness | Direct Attach | Ceiling | ||||||
No airspace | 3/4″ Airspace | 1″ Cellulose Acoustical Backer | 2″ Cellulose Acoustical Backer | No Backer | 1″ Cellulose Acoustical Backer | 2″ Cellulose Acoustical Backer | ||
5/8″ | 0.50 | 0.90 | 0.95 | |||||
1″ | 0.45 | 0.50 | 0.80 | 0.85 | 0.40 | 0.80 | 0.85 | |
1″ (Microstrand) | 0.60 | 0.50 | 0.80 | 0.95 | 0.55 | 0.90 | 0.95 | |
1-3/8″ | 0.55 | 0.60 | 0.80 | 0.90 | 0.60 | 0.85 | 0.90 | |
2″ | 0.75 | 0.75 | 0.90 | 0.95 | 0.75 | 0.95 | 0.95 |
StrandTec Wall Panel Product Details
Thickness | Width | Lengths | Edge Detail | Factory Finish |
---|---|---|---|---|
1″ | 24″ | 48″, 96″ | Bevel, Square | Primed Clear, Primed White, Painted |
1″ (Microstrand) | 24″ | 48″, 96″ | Bevel, Square | Primed Clear, Primed White, Painted |
1-3/8″ | 24” | 48″, 96″ | Bevel, Square | Primed Clear, Primed White, Painted |
2″ | 24″ | 48″, 96″ | Bevel, Square | Primed Clear, Primed White, Painted |
StrandTec Wall Panels are to be mechanically fastened to an approved substrate.
Bars, restaurants, sports and entertainment venues, schools, music
practice and band rooms, pools, convention centers, gymnasiums,
houses of worship, manufacturing and industrial facilities, corporate
spaces, airports, and more.
ASI Arch Name | Edge Detail | Color | Thickness | Standard Sizes | Custom Sizes | Installation Methods |
---|---|---|---|---|---|---|
StrandTec Backfill | Bevel, Square | Primed Clear, Primed White, Painted, Fabric – Hytex Rib (Beveled Edge Only) | 2″, 2.375″, 3″ | 24″ x 48″, 24″ x 96″ | Up to 24″ x 96″ | Direct Attach |
StrandTec Direct Attach | Bevel, Square | Primed Clear, Primed White, Painted | 1″, 1.375″, 2″ | 24″ x 48″, 24″ x 96″ | Up to 24″ x 96″ | Direct Attach |
StrandTec Designs | Bevel | Primed Clear, Primed White, Painted | 1″, 1.375″, 2″ | 24″ x 24″, 24″ x 48″ | Up to 24″ x 96″ | Direct Attach |
StrandTec Wrapped | Bevel | Fabric – Hytex Rib | 1″, 1.375″, 2″ | 24″ x 48″, 24″ x 96″ | Up to 24″ x 96″ | Z-Clip |
StrandTec Baffle | Bevel, Square | Primed White, Painted | 1″, 1.375″, 2″ | 12″ x 48″, 24″ x 48″ | Up to 24″ x 96″ | Suspension by other |
StrandTec Lay-In | Square | Primed Clear, Primed White, Painted | 0.625″, 1″, 1.375″, 2″ | 23.75″ x 23.75″, 23.75″ x 47.75″ | None | Lay-In |
StrandTec Tegular Lay-In | Tegular | Primed Clear, Primed White, Painted | 1″, 1.375″, 2″ | 23.75″ x 23.75″, 23.75″ x 47.75″ | None | Lay-In |
StrandTec Cloud | Bevel, Square | Primed Clear, Primed White, Painted | 1.375″, 2″ | 24″ x 48″, 24″ x 96″ | Up to 24″ x 96″ | Suspension by other |
StrandTec Shapes | Bevel | Primed Clear, Primed White, Painted | 1″, 1.375″, 2″ | See table | Up to 24″ x 96″ | Direct Attach |
Class A per ASTM E-84
Primed Clear 50%
Primed White 70%
1″ = 2 lbs./sf
1-3/8″ = 3 lbs./sf
2″ = 4 lbs./sf
1″ R-Value: 2.32
2″ R-Value: 3.74
Available options

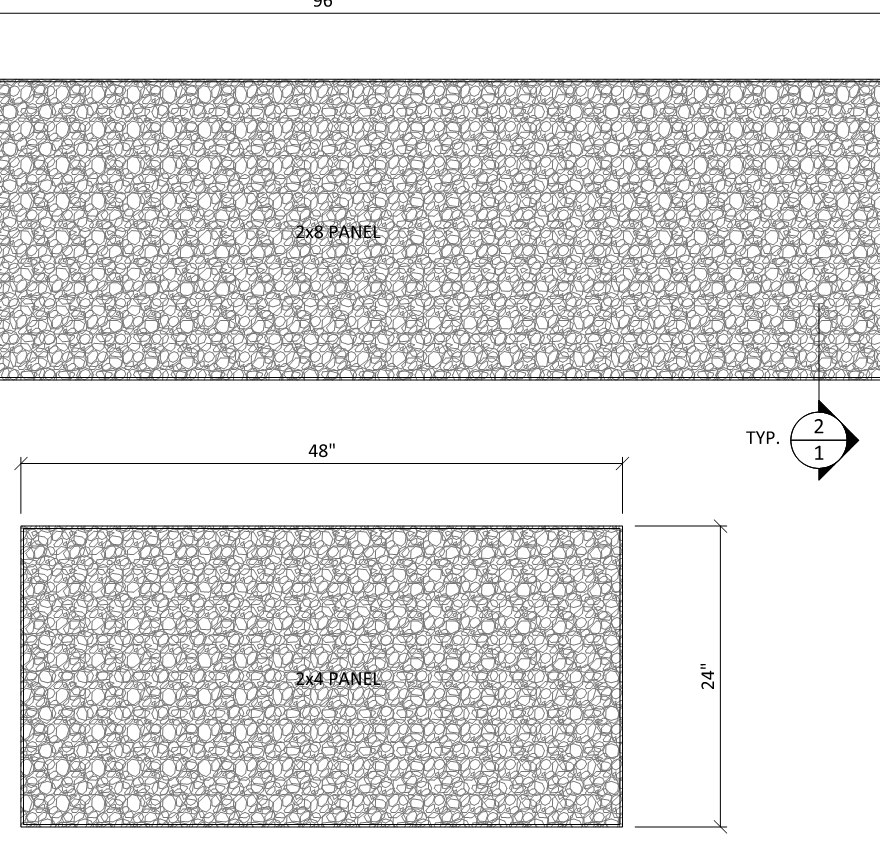

StrandTec Direct Attach
StrandTec Direct Attach
• Panels are face fastened for fast easy installation

Resources

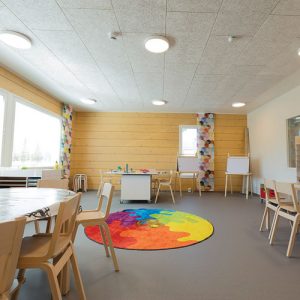

StrandTec Lay-In

StrandTec Lay-In
StrandTec Lay-In
• Standard panel sizes can be field cut to fit irregular shaped installations
• Lays in to HD 15/16” T-bar grid for 100% accessibility
Resources
CSI Spec
Installation Instructions
Standard Details

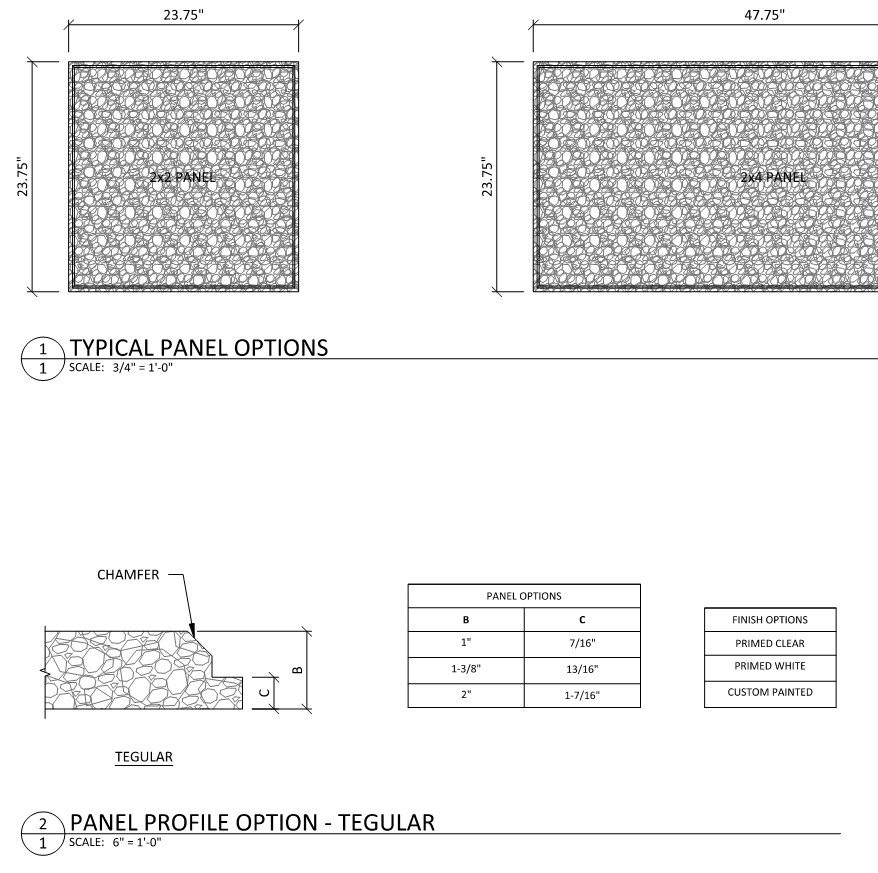

StrandTec Tegular Lay-In
StrandTec Tegular Lay-In
• Standard panel sizes can be field cut to fit irregular shaped installations
• Lays in to HD 15/16” T-bar grid for 100% accessibility
• Tegular Lay-In panels have a 1” reveal

Resources
Installation Instructions
Standard Details

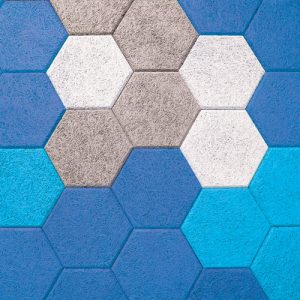

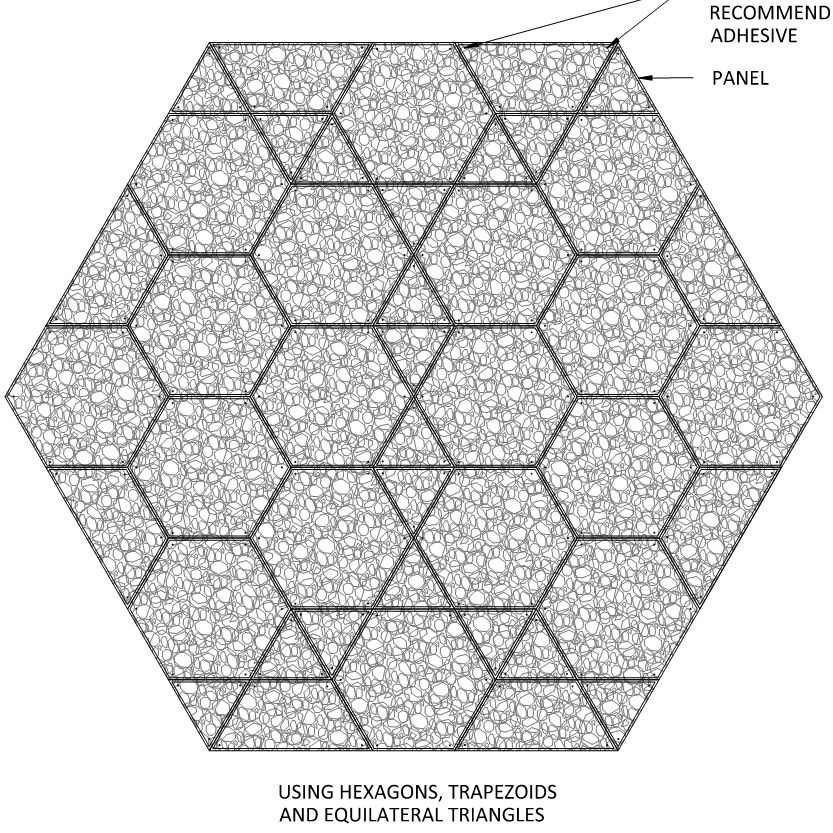

StrandTec Shapes

StrandTec Shapes
• Panels can be mixed and matched for unique installations
Resources
StrandTec Backfill
StrandTec Backfill
• Panels are back loaded with an acoustical backer for higher NRC

Resources

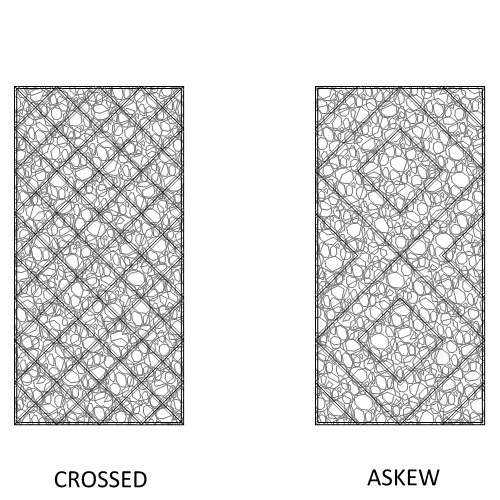

StrandTec Designs

StrandTec Designs
• Panels have different patterns that can be used alone or together to achieve different appearances and designs
Resources

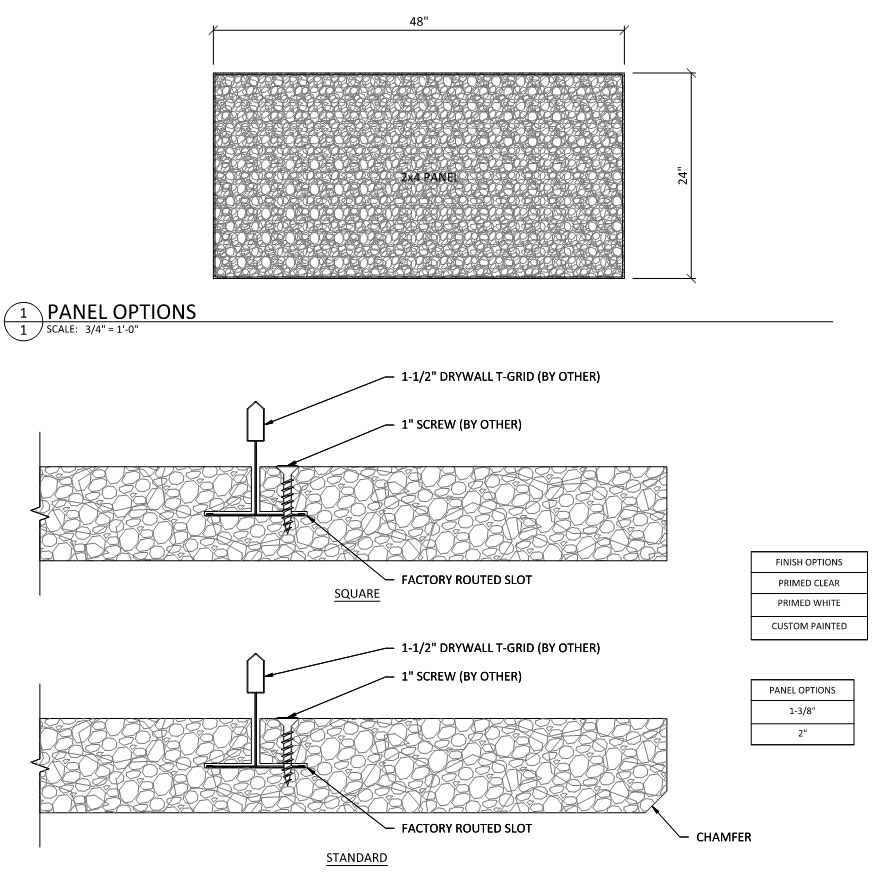

STRANDTEC Cloud
STRANDTEC Cloud
• Panels accept standard 15/16” HD T-Bar grid for easy installation

Resources
CSI Spec
Installation Instructions
Standard Details
Testing
Acoustical Tests Coming Soon!
StrandTec Direct Attach Fire Tests (6 Tests)
StrandTec Direct Attach Environmental Tests (3 Tests)

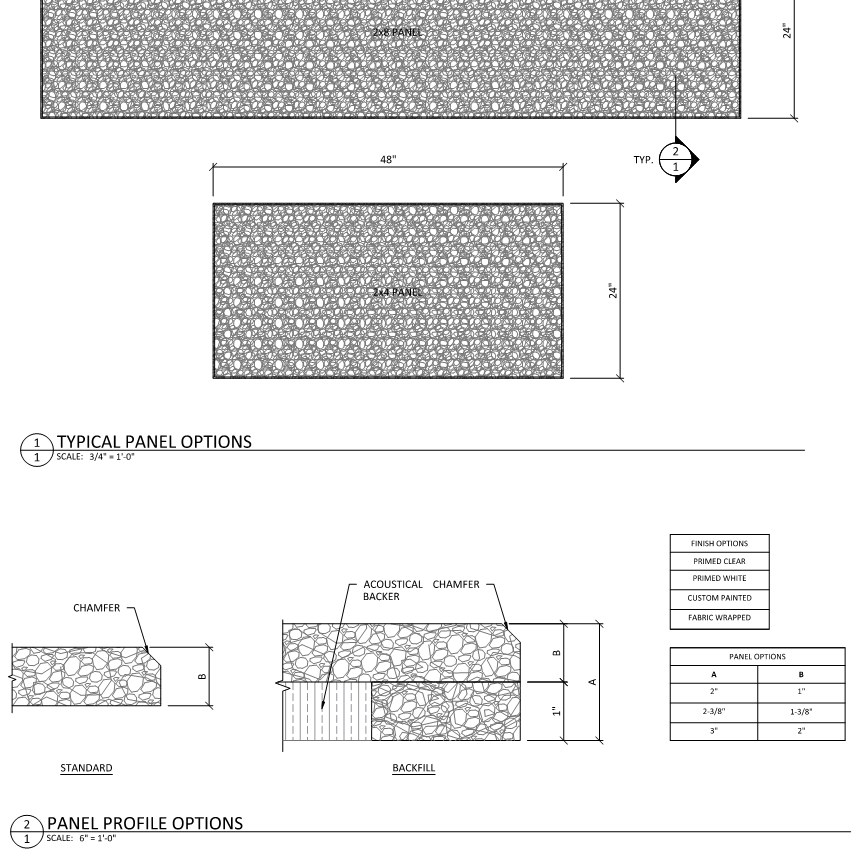

StrandTec Wrapped

StrandTec Wrapped
• Several face options provide a number of design options
Resources
CSI Spec
Installation Instructions
Standard Details

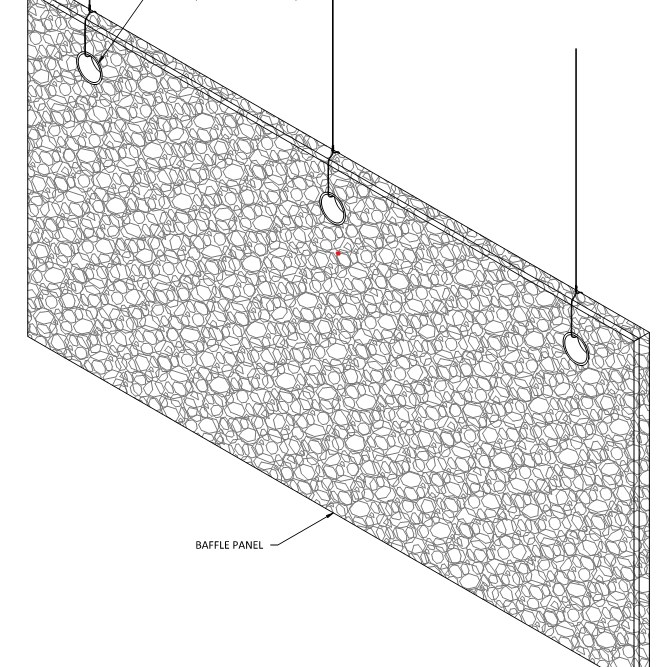

StrandTec Baffle
StrandTec Baffle
• Suspended installation through reinforced eye

Resources
CSI Spec
Installation Instructions
Coming Soon
Standard Details
Testing
Acoustical Tests Coming Soon!
StrandTec Baffle Fire Tests (6 Tests)
StrandTec Baffle Environmental Tests (3 Tests)
