microperf ceiling

MICROPERF

Microperf Ceilings & Walls

Microperf ceiling and wall panels use cutting-edge acoustical technology, enabling sound mitigation without the look or feel of typical absorber panels. Engineered to appear like a standard millwork panel, they have excellent sound absorption properties. Their lightweight design allows panels to be mounted in a variety of methods. Built with a fiberglass core, Microperf panels are available in wood veneer, vinyl, and can be painted or stained to match.

If ordering quantities less than 500 sq.ft. please call 1.888.258.4637 for availability.

Features

Available in wood veneer in the species shown below*
Uncompromised aesthetics
Lightweight, impact resistant, and rigid
Low reactivity to seasonal changes in temperature and humidity
Can be hung like traditional wall panels using z-clips or installed on HD T-Bar grid
Face options: real wood veneer or vinyl
FINISHES: Clear lacquer top coat, Class-A varnish, or stained to match
Touch-up finish available for field application

Class A Fire Rating

Microperf 3/4″: NRC Rating .70
Microperf 1″: NRC Rating .90

Panel thickness: 3/4″, 1″

maximum width/length: 5′ x 12′

Ceilings: Lay-in or tegular lay-in; torsion spring
Walls: Z-clip / Z-Bar
Surface Diameter: 0.5mm
Pattern: Offset

¾”: 1.2 lbs. / sq. ft.

1″: 1.3 lbs. / sq. ft.

Available options

Microperf Lay In

microperf panel

Microperf Lay In

• Standard panel sizes can be field cut to fit irregular shaped installations
• Lays in to HD 15/16” T-bar grid for 100% accessibility

Resources

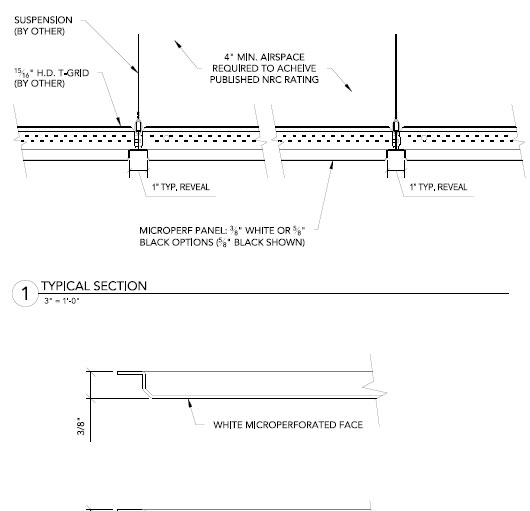

Microperf Metal

Microperf metal

• Standard panel sizes can be field cut to fit irregular shaped installations
• Lays in to HD 15/16” T-bar grid for 100% accessibility
• Tegular panels have a 1” reveal
• Black, White and Anodized finishes are available
• Does not require and Acoustical Backer to achieve an NRC rating
microperf metal

Resources

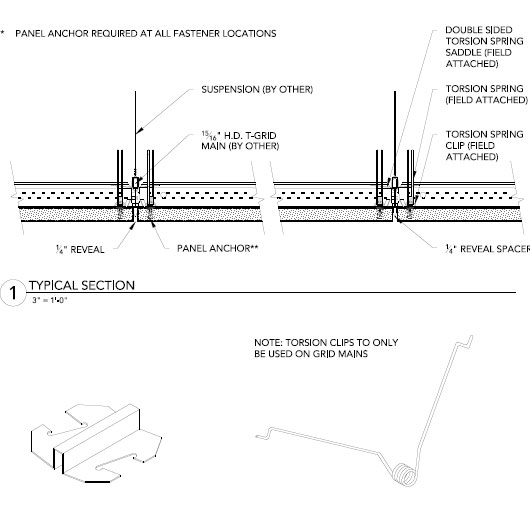

Microperf Panels

microperf panel

Microperf Panels

For ceilings and walls
• Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
• Standard panels can be field cut to fit installation
• Custom sizes available to fit irregular installations

Resources

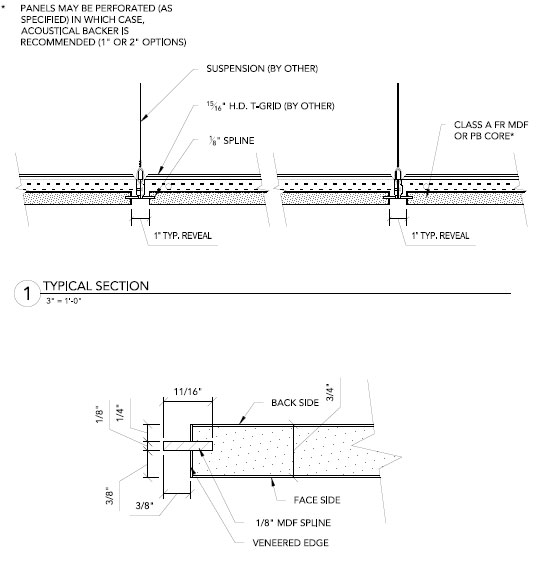

Microperf Tegular

Microperf Tegular

• Standard panel sizes can be field cut to fit irregular shaped installations
• Lays in to HD 15/16” T-bar grid for 100% accessibility
• Tegular panels have a 1” reveal
fusion tegular

Resources

Installation Instructions

Standard Details

Common Wood Species

Veneer pricing varies from one species to another. Please request pricing for a specific veneer.

Ash

MAPLE

BEECH

WALNUT

Red Oak

White Oak

Hickory

CHERRY

NATURAL BAMBOO

CARAMELIZED BAMBOO
