Linear Alumiline Ceilings & Walls

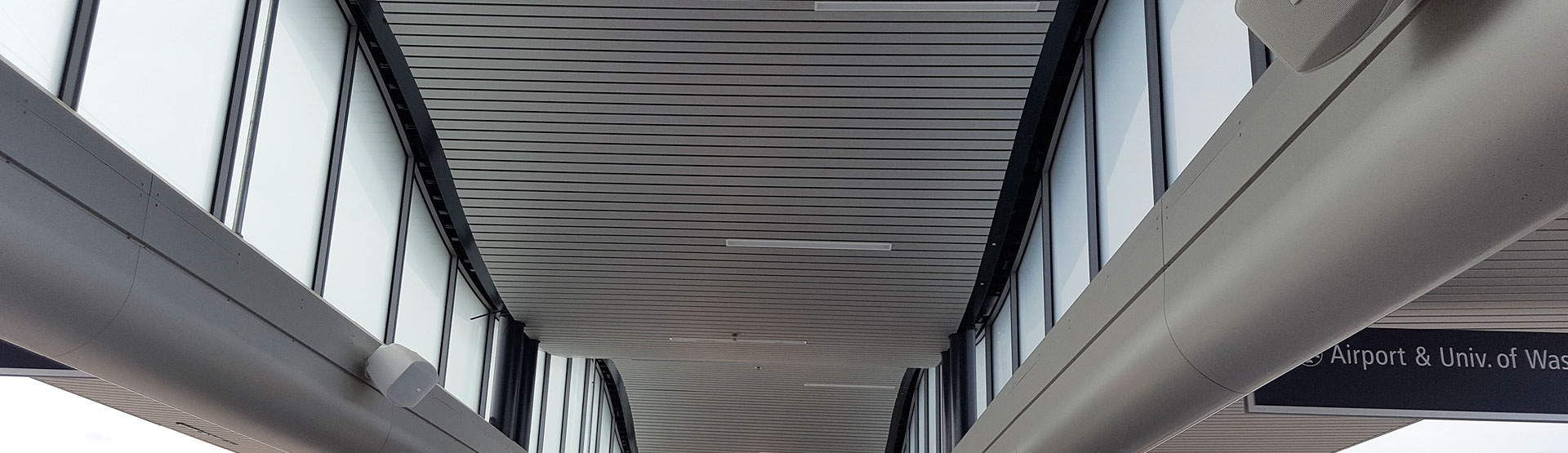

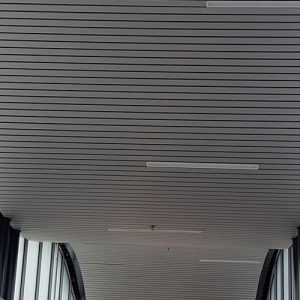

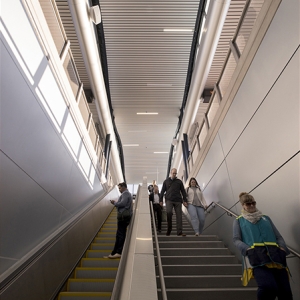

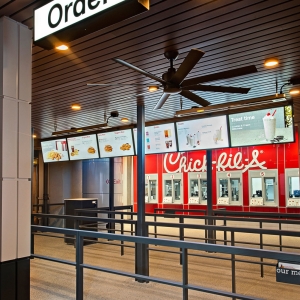

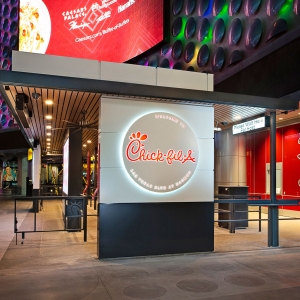

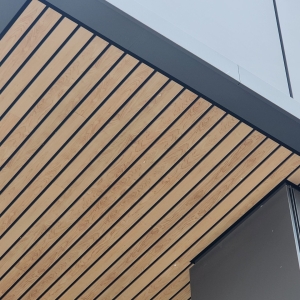

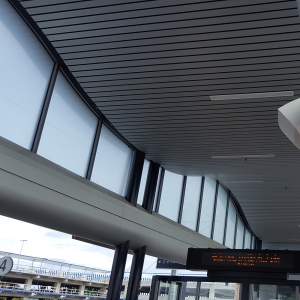

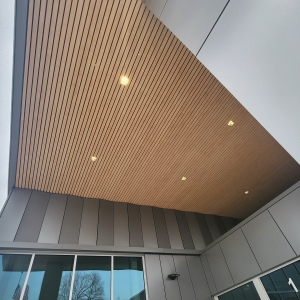

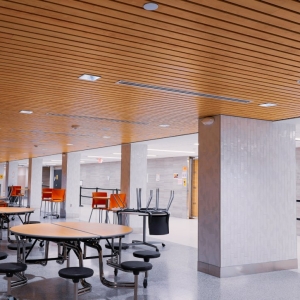

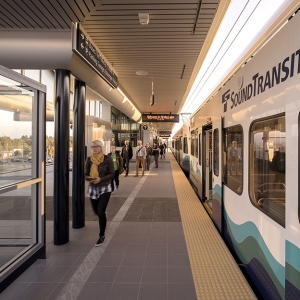

This industry-first in ceiling planks is made from extruded aluminum and offers superior abuse-resistant properties. Available in two types, Tongue and Groove (T&G) and Reveal, Linear Alumiline Metal ceiling system planks are offered with standard 8′ and 10′, as well as custom lengths, and are an excellent choice for external applications or high humidity environments such as soffits, carports or public terminals.
If ordering quantities less than 500 sq.ft. please call 1.888.258.4637 for availability.
Features
Class A Fire Rating
Optional features for sound control for Linear Alumiline Reveal: Acoustical backer available in 1″ and 2″
Direct attach clip
15/16″ HD T-Bar grid clip
Available options

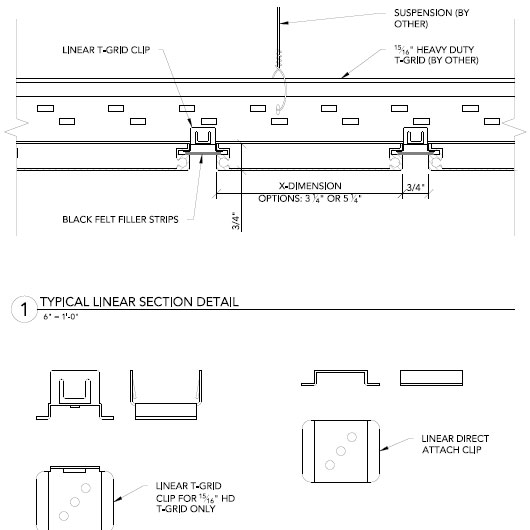

Reveal
Reveal
• Planks are field cut to fit irregular installations
• Planks provide a monolithic appearance with staggered end joints
• Custom lengths available for seamless installations
• Perfect for high humidity installations
• Optional Powder Coat finish provides durability in high traffic areas
Resources
Installation Instructions
Standard Details

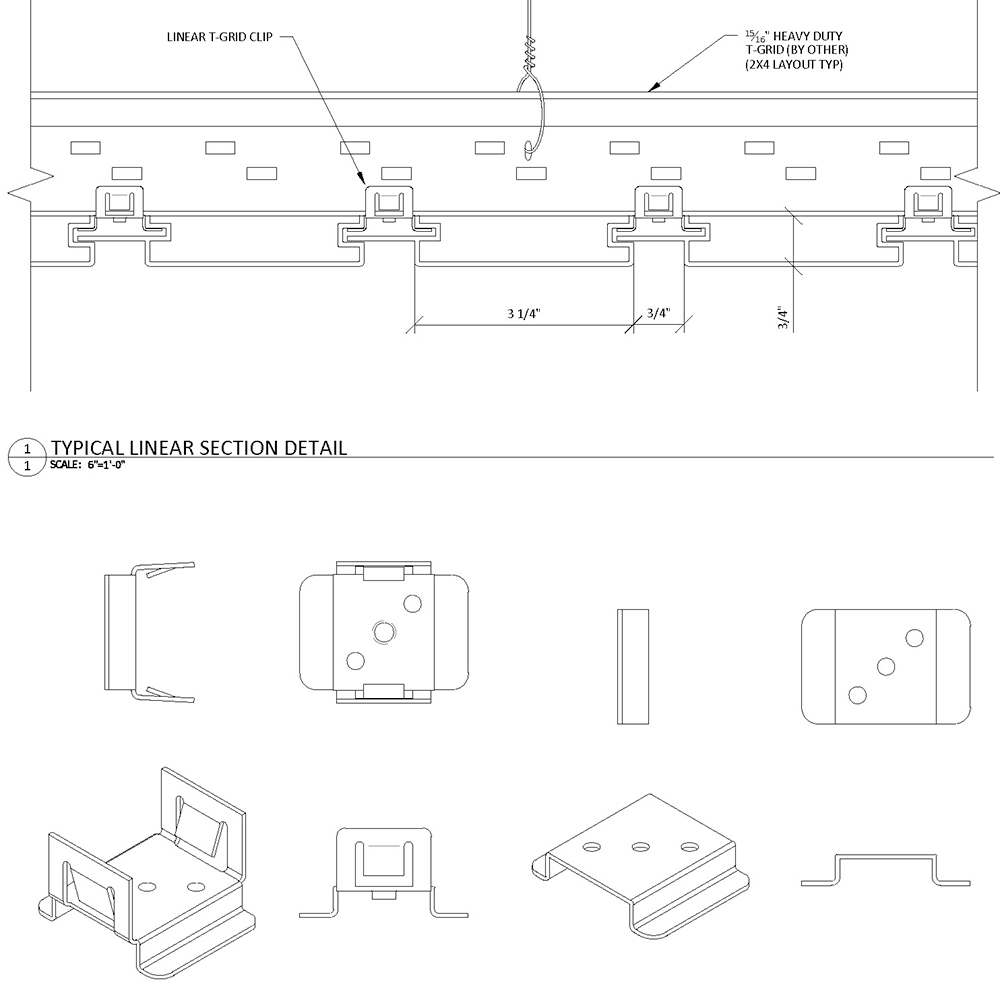

Tongue and Groove
Linear Alumiline Tongue and Groove

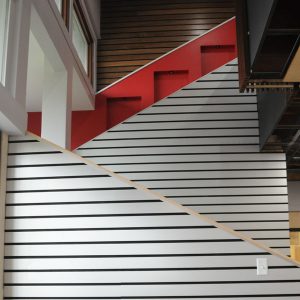

For ceilings and walls
• Available in four edge options: V-Groove, Flat V-Groove, Butt Joint, and Flat Reveal
• 4`` Module Size
• 8' and 10' standard lengths, custom lengths available for seamless installations
• Perfect for high humidity or exterior installations
Resources
Installation Instructions
Coming Soon!
Standard Details
Wood Grain Finishes
Birch - Dark
Birch - Light
Knotty Pine - Dark
Knotty Pine - Light
Douglas Fir - Dark
Douglas Fir - Light
Walnut - Dark
Walnut - Light
Cherry - Dark
Cherry - Light
Oak - Dark
Oak - Light

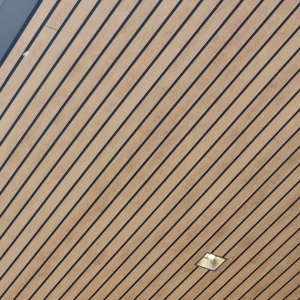

Maple
Clear Anodized Aluminum
Clear
POWDER COATED (SOLID)
Powder coated solid-color options are vast and typically powder is ordered to match a desired RAL number. Please provide an RAL number for color matching and call with questions or for additional information.
ACCESSORIES AND TRIM

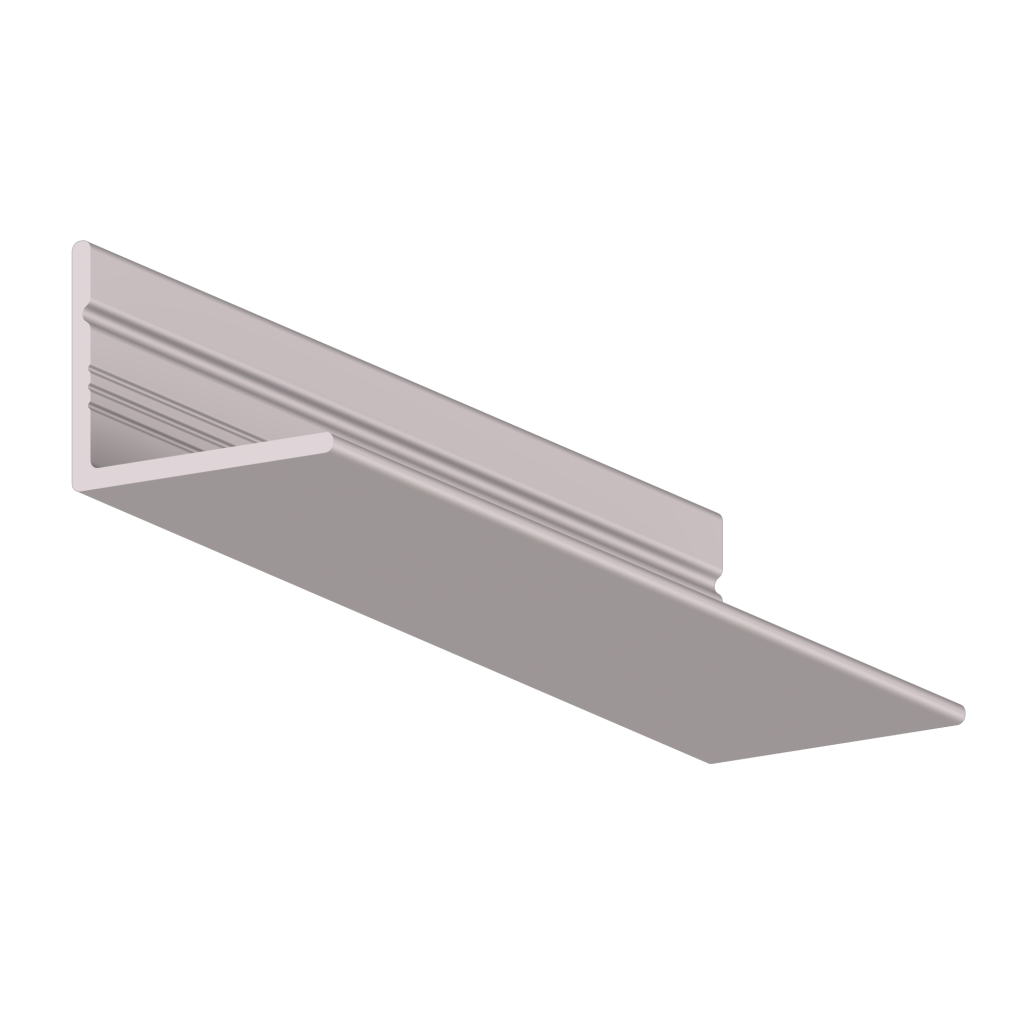

Wall Angle

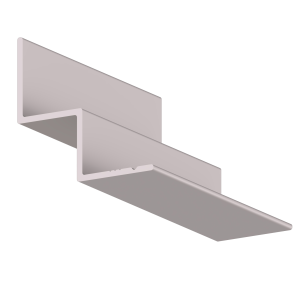

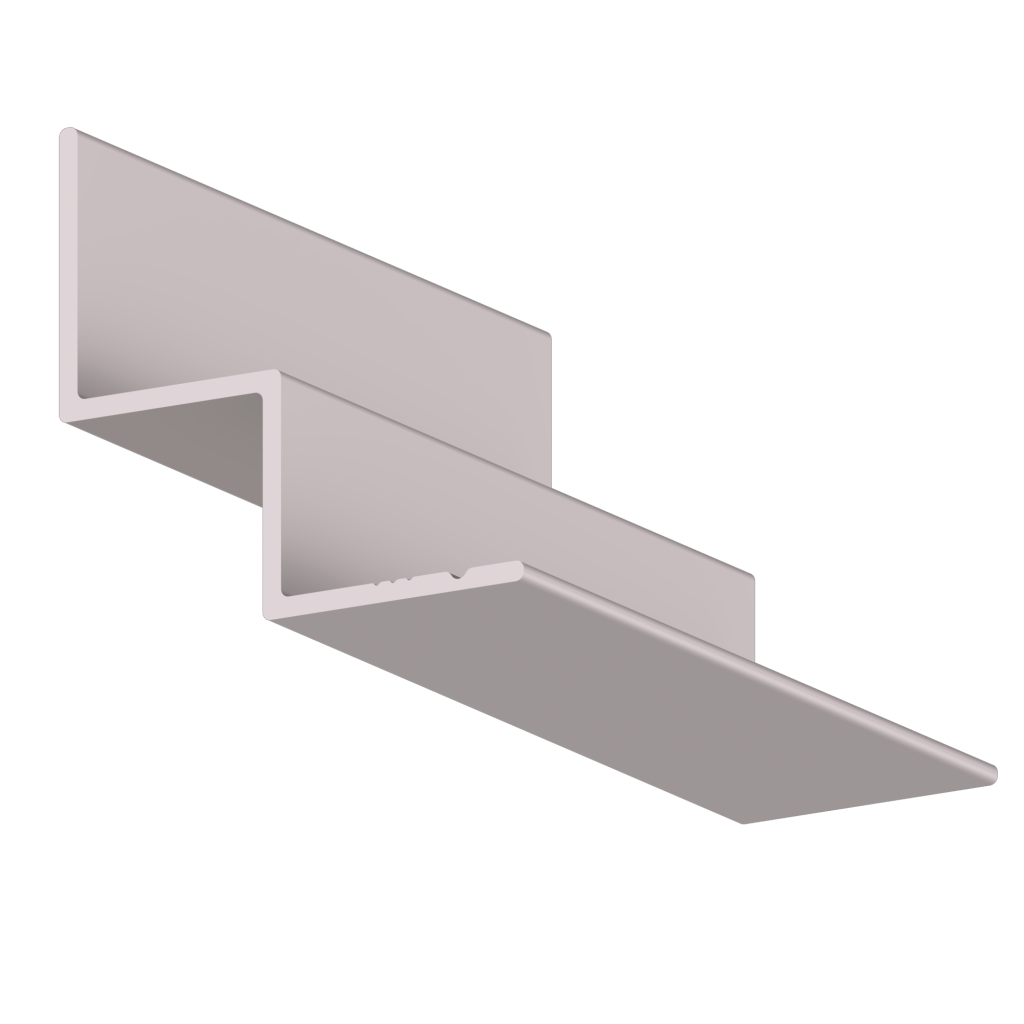

Shadow Moulding

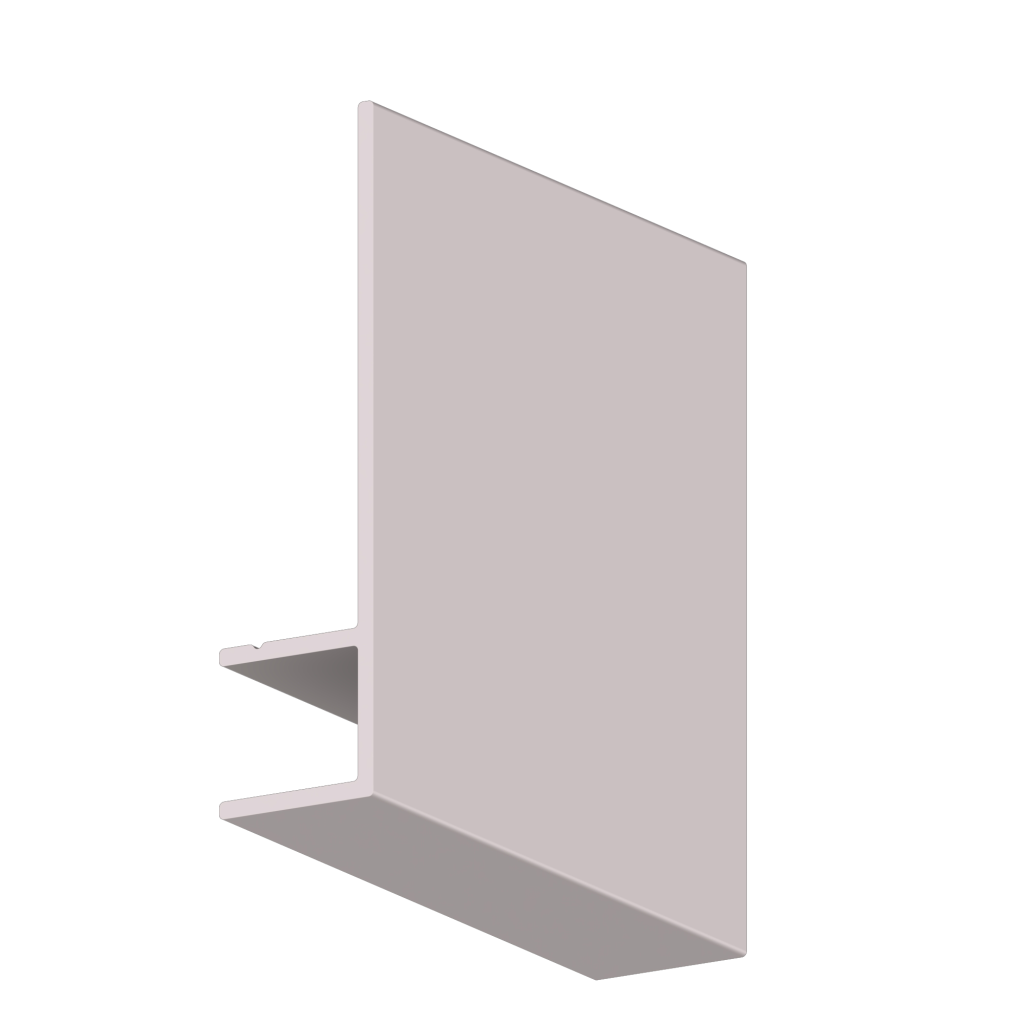

F-Trim

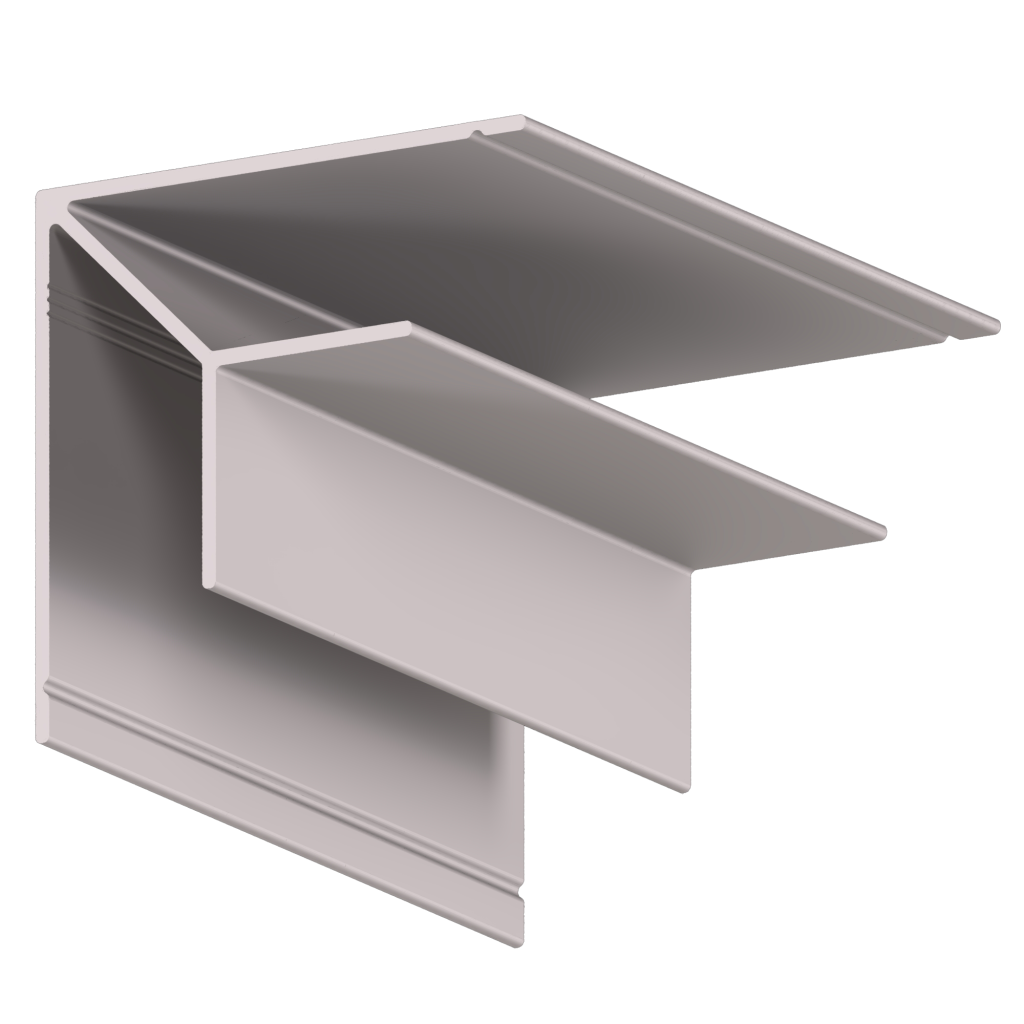

Inside Corner

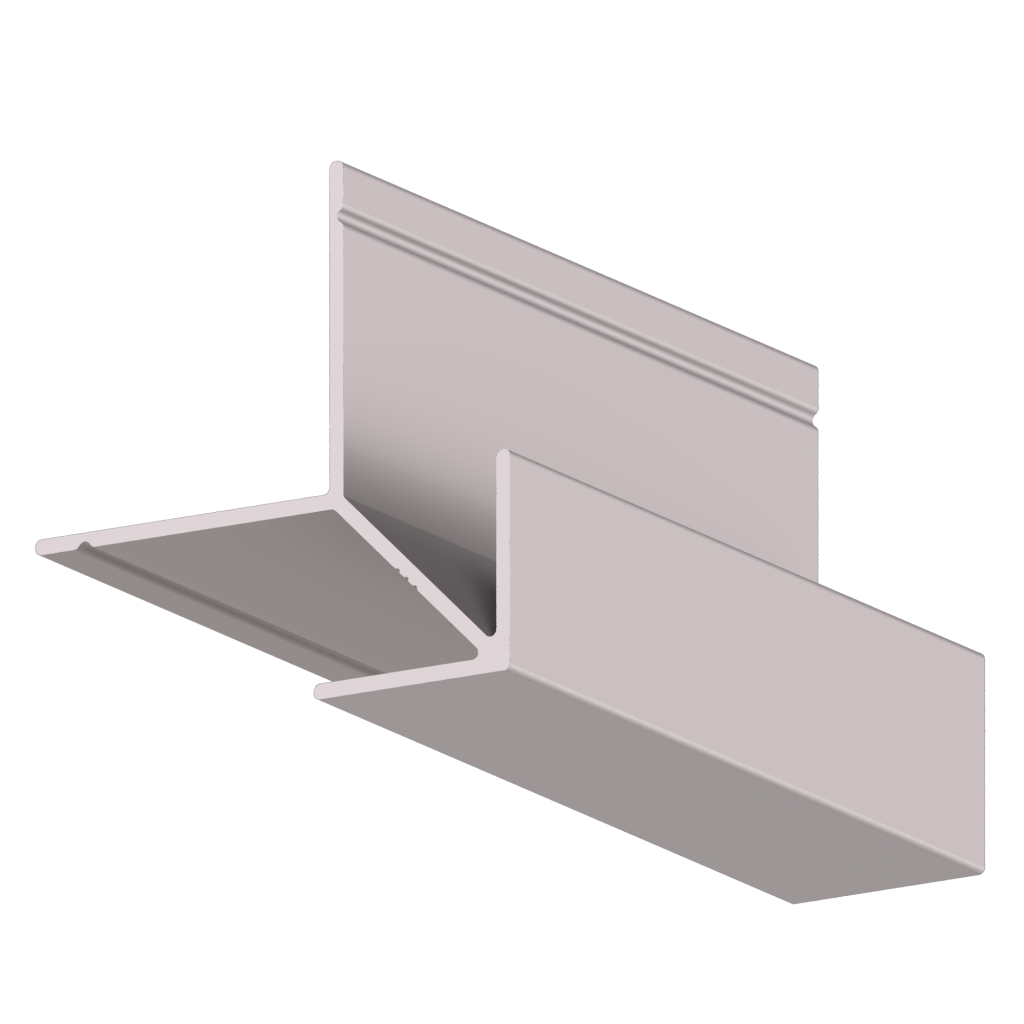

Outside Corner
Trim Component Details
- Material: Extruded Aluminum
- Stick Length: 120″
- Finish Options: Clear Anodized, Powder Coated or Wood Grain Powder Coated. See page 7 for additional information.
- Note: Base trim for H-Trim and J-Trim are mill finish. Visible surfaces of profile will be finished as specified.

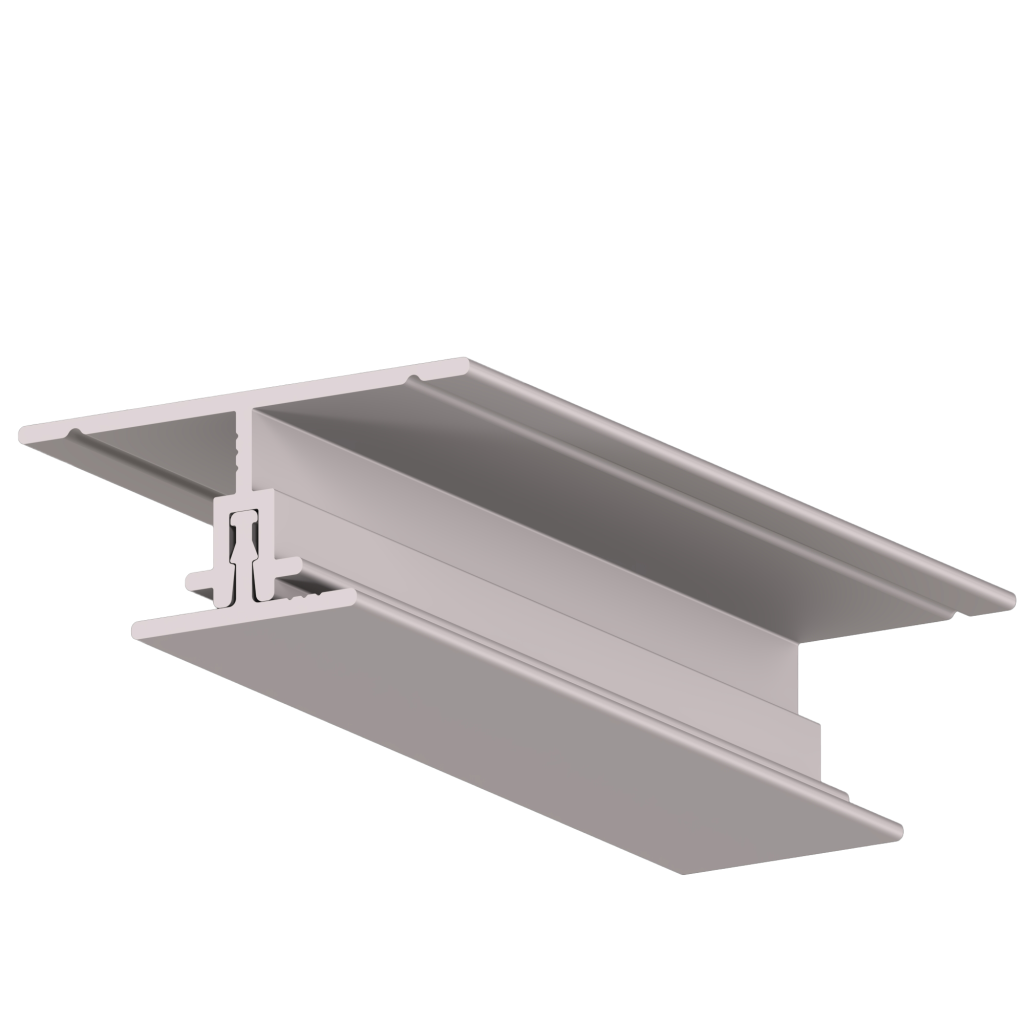

H-Trim
Base and profile

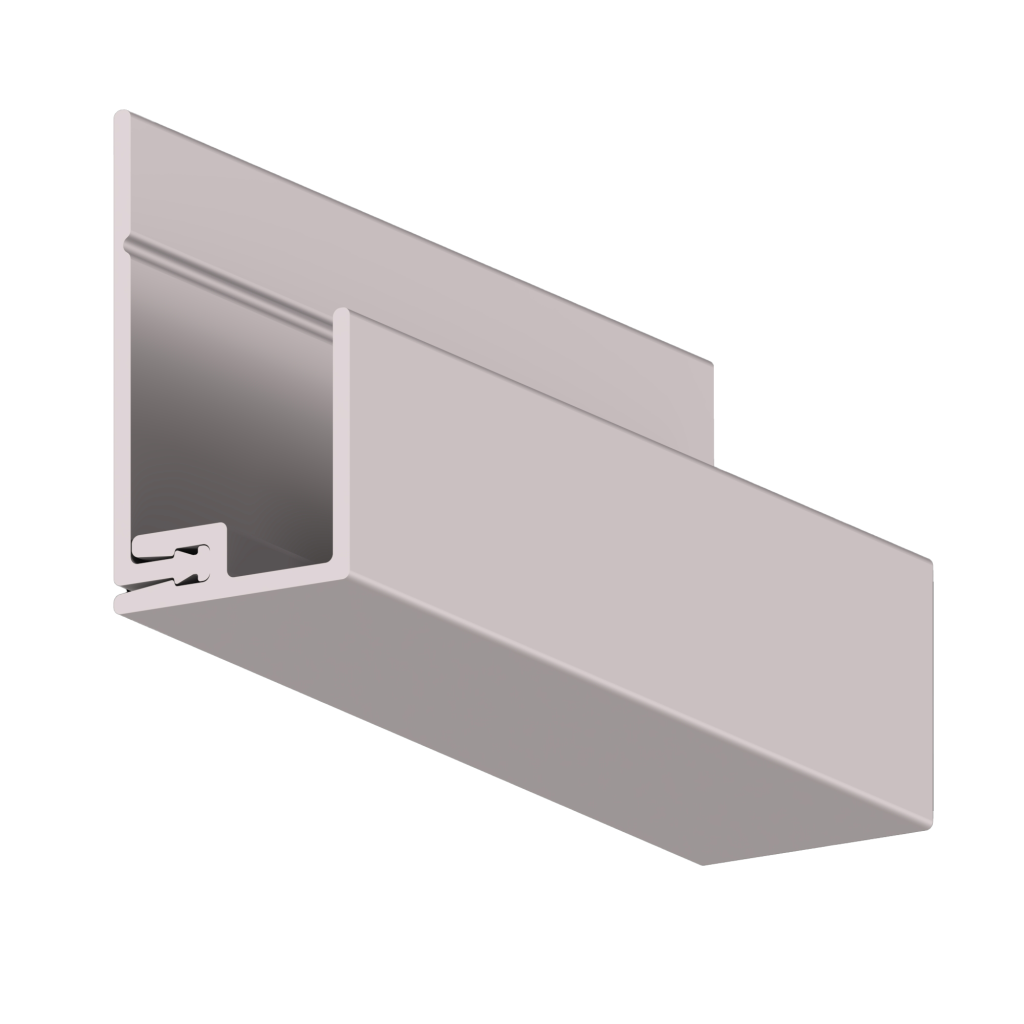

j-Trim
Base and profile
Note: H- and J-trim components are provided as two-piece assemblies designed to snap together during field installation for edge finishing of modules.
