Microperf METAL
Ceilings

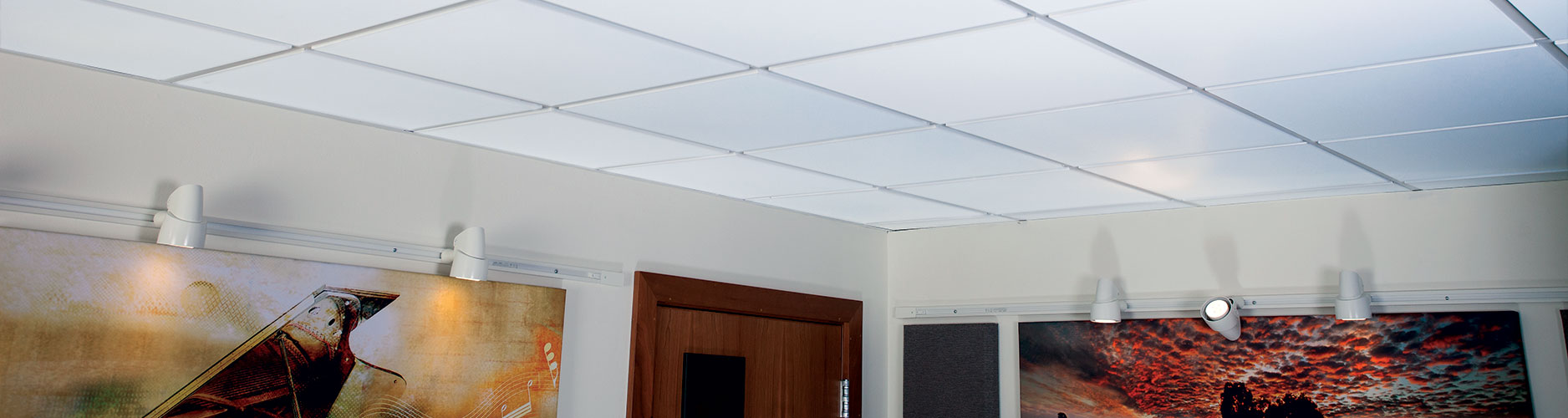

Microperf Metal Ceiling Tiles are unique state-of-the-art micro-perforated aluminum sound absorber panels that reduce echo and sound reflections. They have an elegantly smooth appearance, with an excellent NRC Rating of 0.80. Resembling smooth, silk-like fabric, these affordable tegular or flat tiles install easily into any standard 15/16″ HD T-Bar ceiling grid.
If ordering quantities less than 500 sq.ft. please call 1.888.258.4637 for availability.
Features
Tegular or flat lay-in ceilings
Black, White and Clear Anodized
Cost-effective
Installs into standard 15/16” grid
Also available as custom wall panels
Resembles smooth fabric surface in appearance
Appearance: Flat or Tegular
Stock Colors & Sizes: 23¾” × 23¾”, White – 3/8” – Tegular Edge or
23¾” × 23¾”, Black – 5/8” – Tegular Edge
Excellent NRC Rating – 0.80 NRC (per ASTM C423) with a
4” airspace, no acoustical backer needed
| Product | 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHZ | NRC |
| Microperf Silk Metal |
0.86 | 0.94 | 0.65 | 0.77 | 0.76 | 0.75 | .80 |
White Tegular – 3/8″ tegular edge, 23-3/4″ x 23-3/4″
Black Tegular – 5/8″ tegular edge, 23-3/4″ x 23-3/4″
Flat panels available up to 26-3/4″ x 78-3/45
Lay in and Lay in Tegular
Available options
Microperf Metal
Microperf Metal
• Standard panel sizes can be field cut to fit irregular shaped installations
• Lays in to HD 15/16” T-bar grid for 100% accessibility
• Tegular panels have a 1” reveal
• Black, White and Anodized finishes are available
• Does not require and Acoustical Backer to achieve an NRC rating
