wood clouds example

CLOUD

Cloud Ceilings – Flat, Convex, & Concave, in Perf & Non-Perf

 Cloud panels are easy to install, and may be used individually or linked together (with mending plates) in various sizes and shapes to form larger clouds. Mounted on 1″ steel tube frames, Clouds are available in concave, convex, and flat styles. Curved Clouds have a standard 12′ radius. Custom radius and size options are available. Finishes include wood veneer or a high-pressure laminate. For projects requiring sound absorption, Clouds may be perforated and backed with an acoustical backer.

If ordering quantities less than 500 sq.ft. please call 1.888.258.4637 for availability.

Features

Available in wood veneer in the species shown below*
Convex: 12′ typical radius
Concave: 12′ typical radius
Flat panels

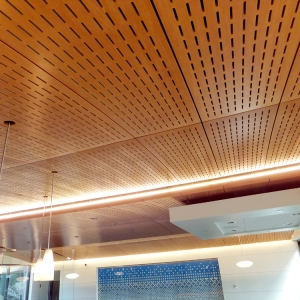

Perforated or slotted
High pressure laminate face optional
Perimeter trim available (MDF core only)
FSC available
May contribute to LEED® projects
FINISHES: Clear lacquer top coat or stained to match

Available core materials are:

Class A Fire Rated Particle Board
Class A Fire Rated MDF

Naturally reflects & scatters sound
Acoustically absorptive when perforated-NRC varies based on the hole pattern Optional features for sound control:
Acoustical backer available in 1″ and 2″ thicknesses

Maximum 60″ x 120″
Curved clouds standard radius 12′
Custom radius may not be less than 48″

Suspended from 1″ tubular steel frames with “D” rings

Available options

Cloud Concave

cloud concave

Cloud Concave

Cloud Concave
• Radius can vary from cloud to cloud in the same installation
• Custom sizes available to fit irregular installations
• Can be used in conjunction with Convex and Flat Clouds

Resources

Installation Instructions

Cloud_Installation Instructions_051118

Standard Details

Cloud Detail-Book.pdf

Testing

Coming Soon

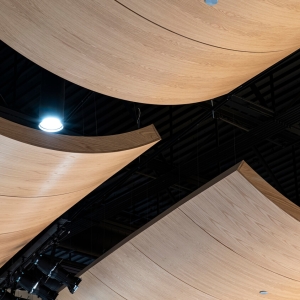

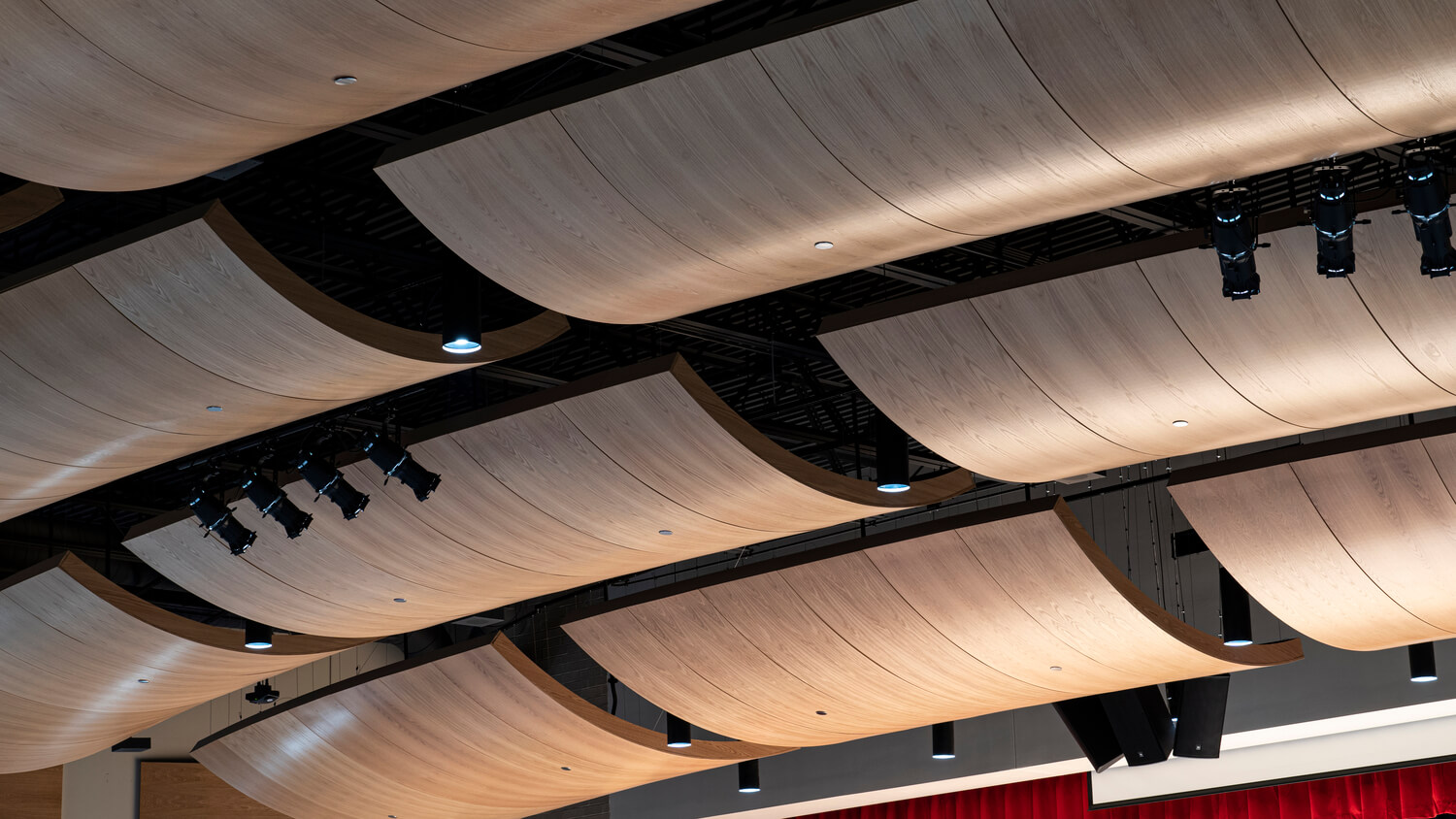

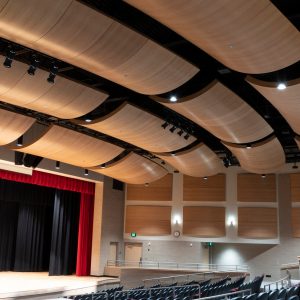

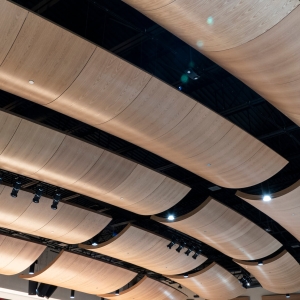

Cloud Convex

Cloud Convex

Cloud Convex
• Radius can vary from cloud to cloud in the same installation
• Custom sizes available to fit irregular installations
• Can be used in conjunction with Concave and Flat Clouds

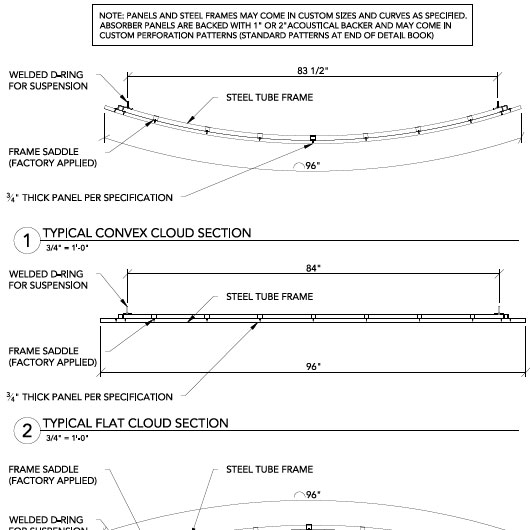

cloud concave 2 technical drawing by ASI Architectural

Resources

Installation Instructions

Cloud_Installation Instructions_051118

Standard Details

Cloud_Detail-Book-1.pdf

Testing

Coming Soon

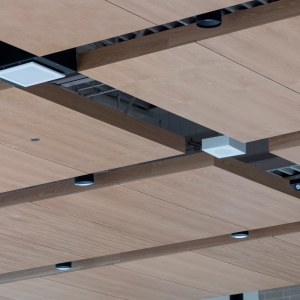

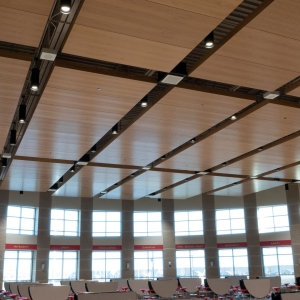

Cloud Flat

cloud concave

Cloud Flat

Cloud Flat
• Custom sizes available to fit irregular installations
• Can be used in conjunction with Convex and Concave Clouds

Resources

Installation Instructions

Cloud_Installation Instructions_051118

Standard Details

Cloud_Detail-Book.pdf

Testing

Coming Soon

Common Wood Species

Veneer pricing varies from one species to another. Please request pricing for a specific veneer.

Ash

MAPLE

BEECH

WALNUT

Red Oak

White Oak

Hickory

CHERRY

NATURAL BAMBOO

CARAMELIZED BAMBOO

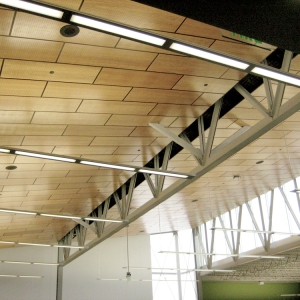

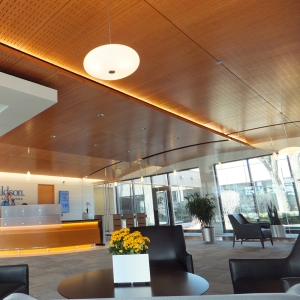

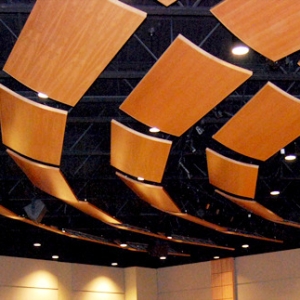

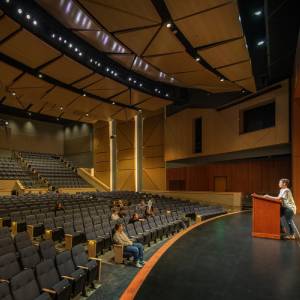

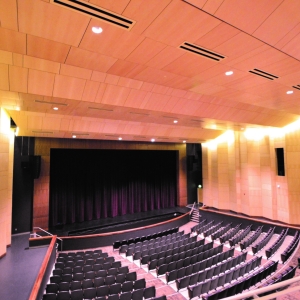

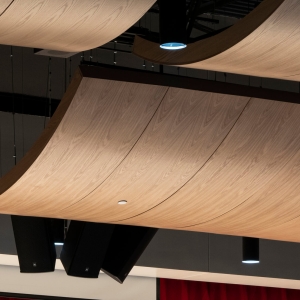

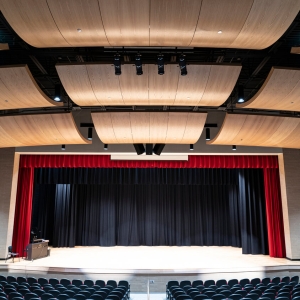

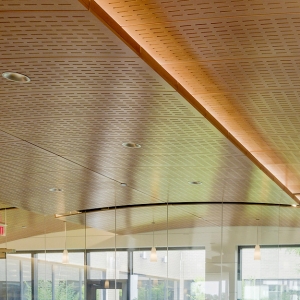

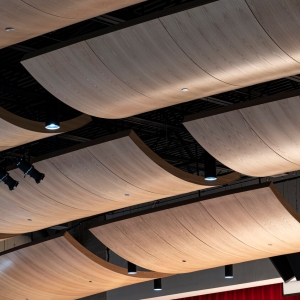

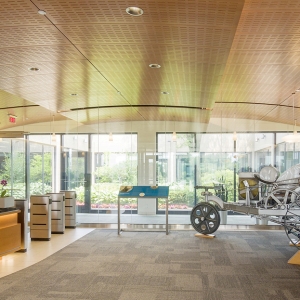

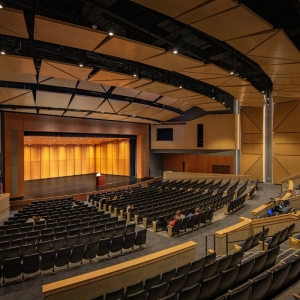

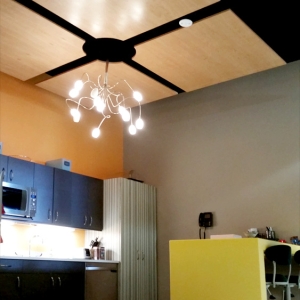

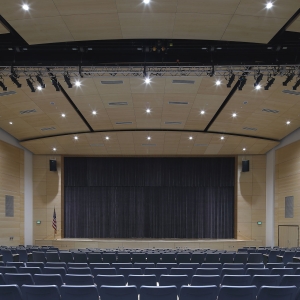

Gallery
