GRILLE

Grille Ceilings & Walls

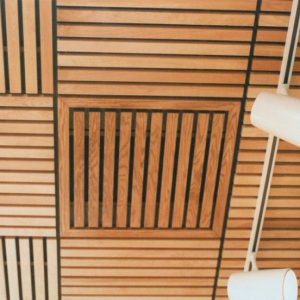

Grille panels are excellent visual design elements for great-looking ceilings and walls. Grille ceiling installation is easy using our attachment clip system to 15/16″ HD T-Bar grid, and both backered and doweled panels are 100% accessible. Use screws for easy wall panel direct attach installation. Standard rail dimensions and spacings are available on our website. Grilles can be stained to match a control sample, and perimeter trim options are available. The system offers design flexibility with five grille styles available. Grilles may be paired with acoustical liner for enhanced acoustics.

Features

Available in solid wood & veneer in the species shown below*
Five styles available: Backer, Backer & Dowel, Dowel, Notched Backer, and Tegular
Backers and dowels are solid wood painted black as standard
Rail options: solid wood or veneer; on edge or laid flat
FSC available
May contribute to LEED® projects
Finishes: Clear lacquer top coat, Class-A varnish, or stained to match
Available core materials:
Solid Wood
Particle Board or MDF
Class A Fire Rated Particle Board or MDF
NRC varies based on rail and reveal dimension

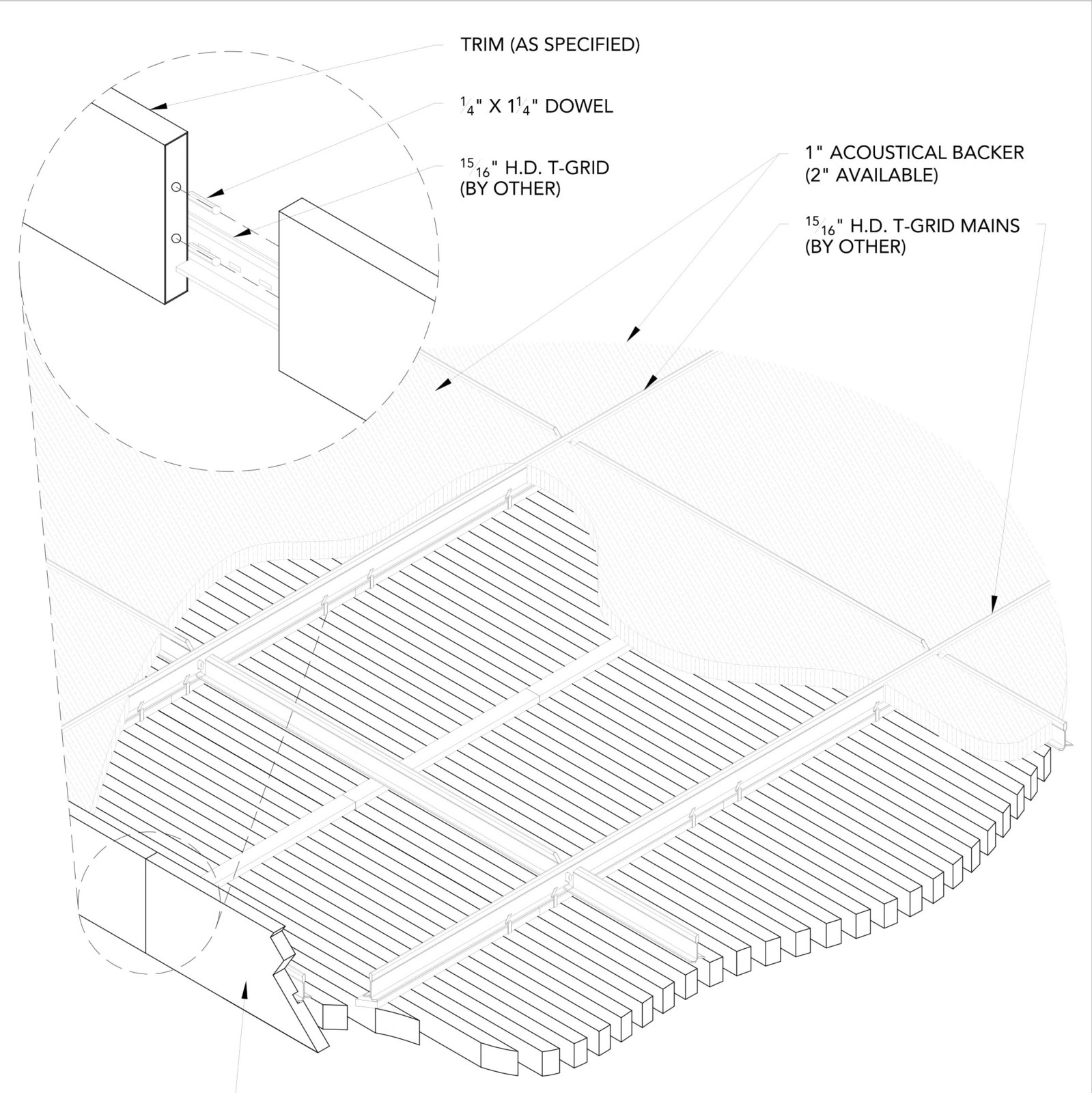

Optional features for sound control: Acoustical backer available in 1″ and 2″

12″ Standard panel width; 8′ Standard panel length, with up to 10′ custom lengths

Walls: Direct attach with screws
Ceilings: attachment to 15/16″ HD T-Bar grid with factory-supplied clips

Available options

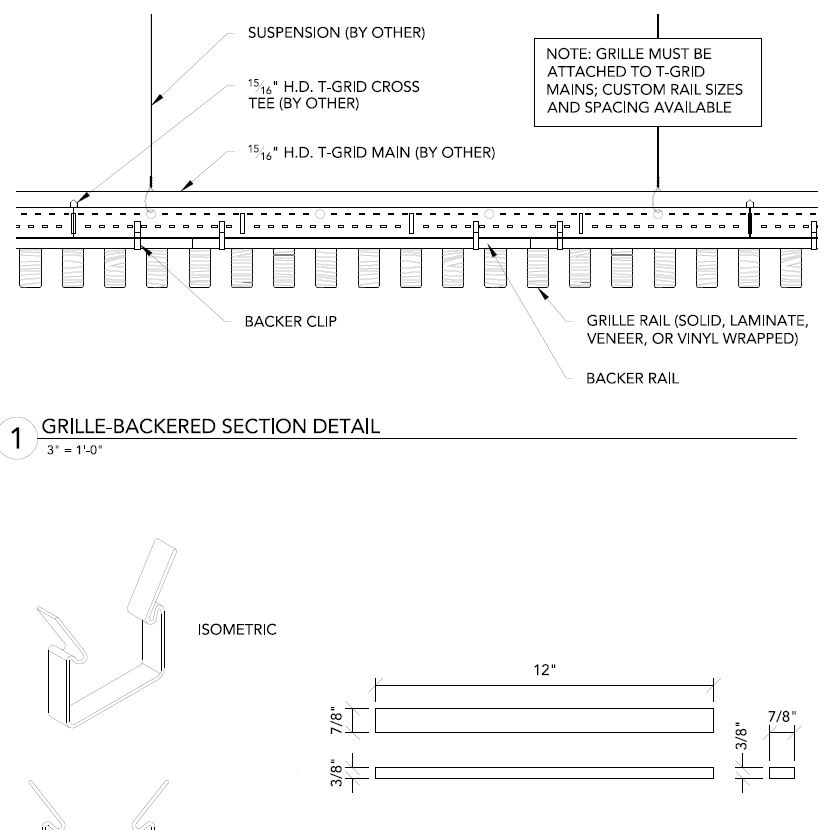

Backer

Backer

Grille - Backer
• Standard panel sizes can be field cut to fit irregular shaped installations
• Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
• Custom rail sizes and spacing available in 12” modules
• Bakers are not visible when acoustical backer is used

Resources

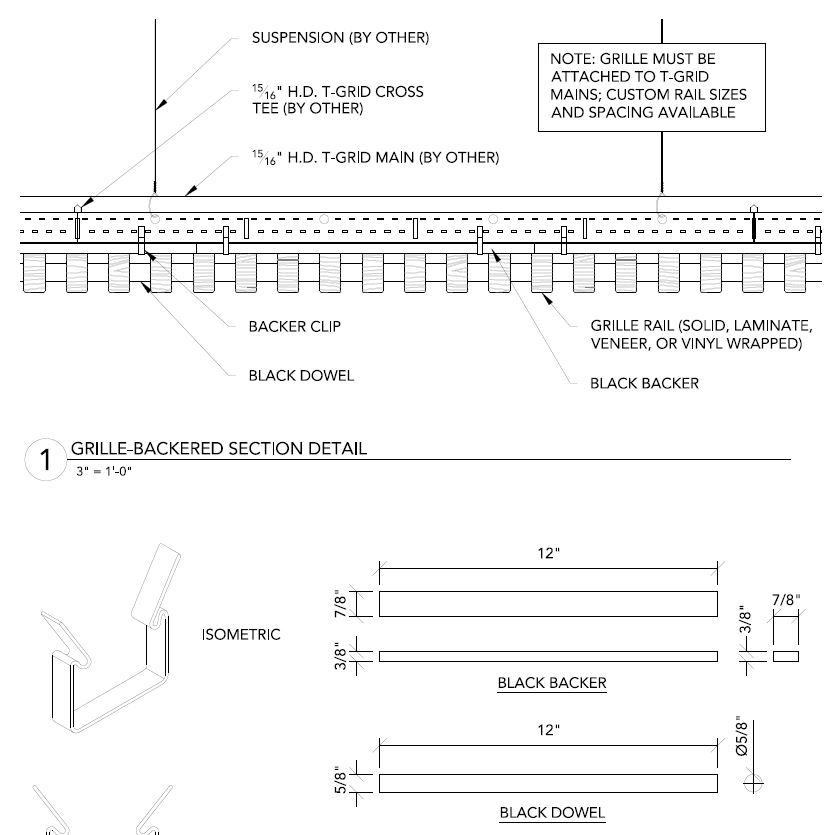

Backer and Dowel

Backer and Dowel

Grille – Backer and Dowel
• Panels are factory made to fit the installations
• Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
• Custom rail sizes and spacing available in 12” modules
• Backers and Dowels secure larger rail sizes
• Dowels are visible

Resources

Dowel

Dowel

• Panels are factory made to fit the installations
• Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
• Custom rail sizes and spacing available in 12” modules
• Dowels are visible

Resources

Notched Backer

Notched Backer

• Panels are factory made to fit the installations
• Attaches to HD 15/16” T-bar grid with clips for 100% accessibility
• Custom rail sizes and spacing available in 12” modules
• Notched Backers secure larger rail sizes

Resources

Tegular Lay In

Tegular Lay In

• Standard panel sizes can be field cut to fit irregular shaped installations
• Lays in to HD 15/16” T-bar grid for 100% accessibility
• Custom rail sizes and spacing available in 23” modules

Resources

Installation Instructions

Coming Soon

Standard Details

Coming Soon

Testing

Coming Soon

Wood Species

Ash

MAPLE

BEECH

WALNUT

Red Oak

White Oak

Hickory

CHERRY

NATURAL BAMBOO

CARAMELIZED BAMBOO

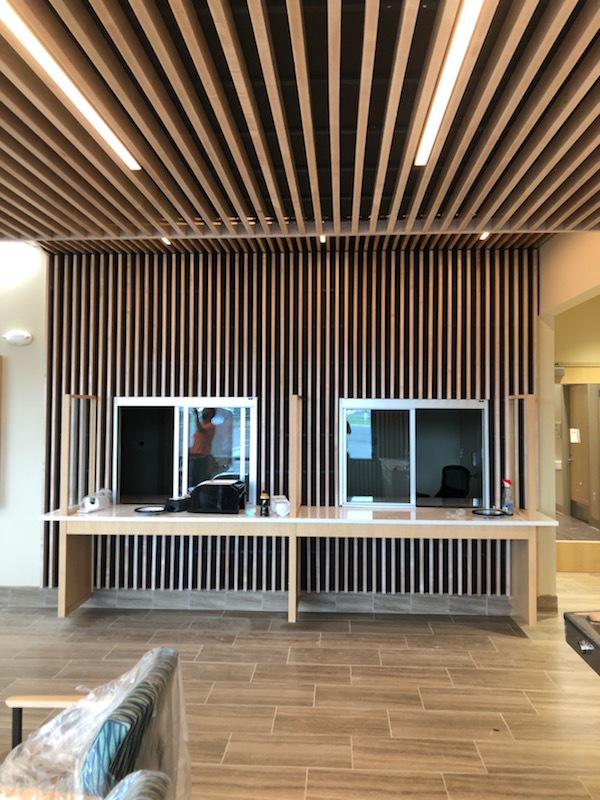

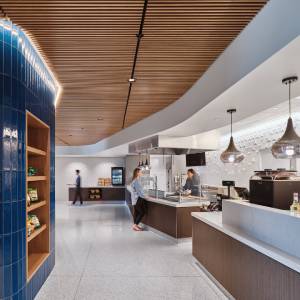

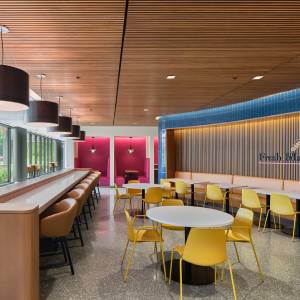

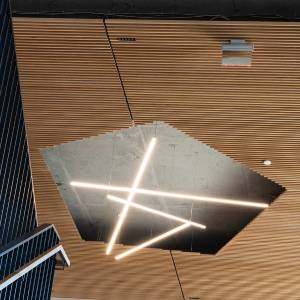

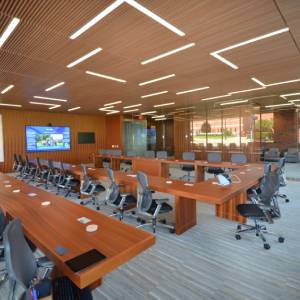

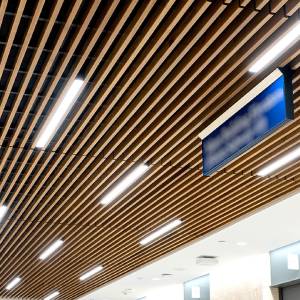

Gallery
