CUBE

Cube Ceilings

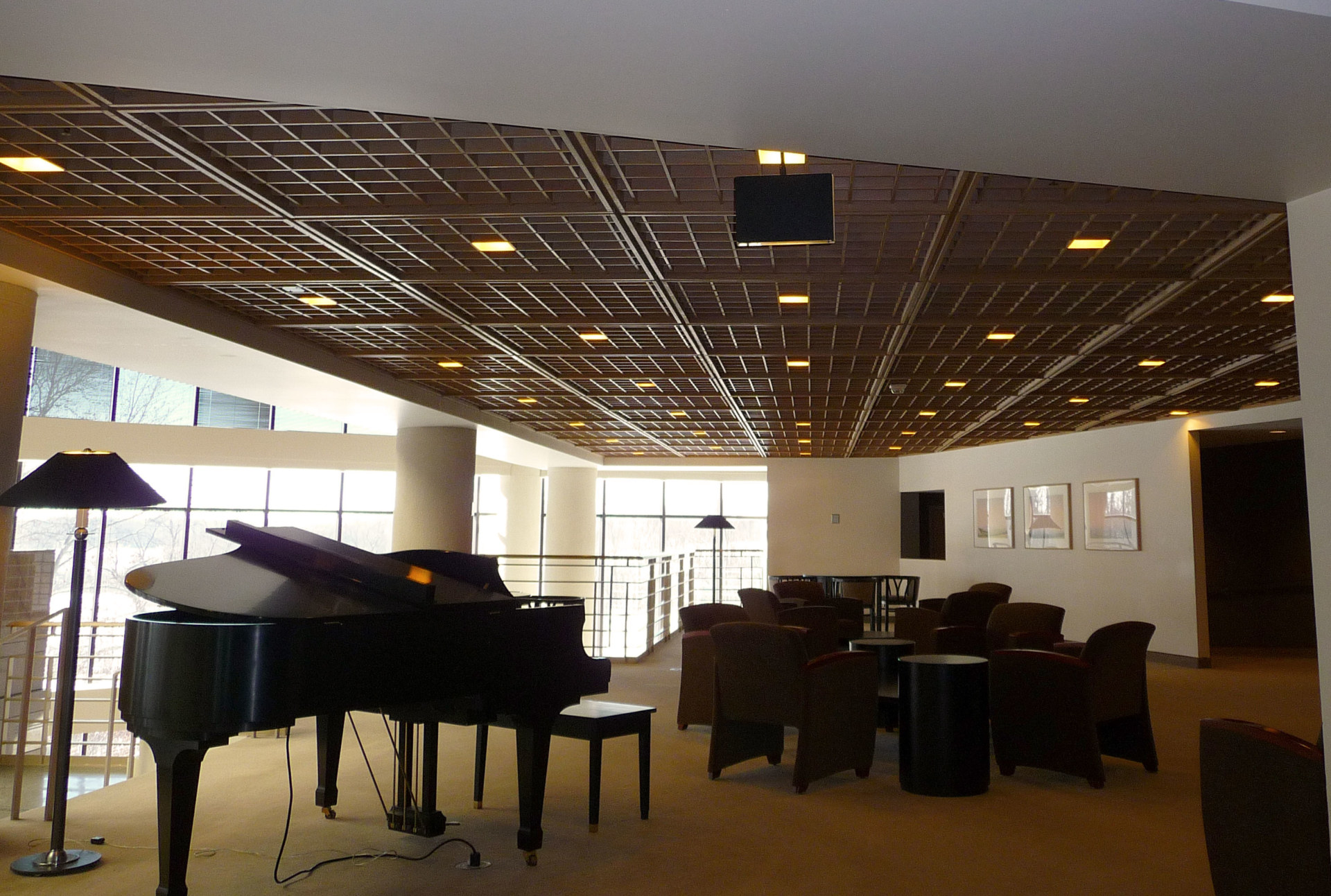

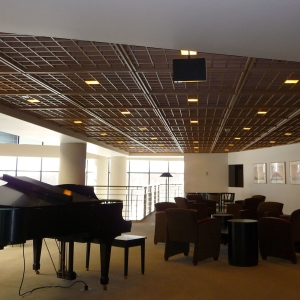

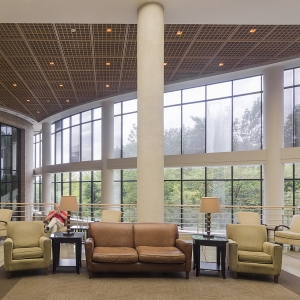

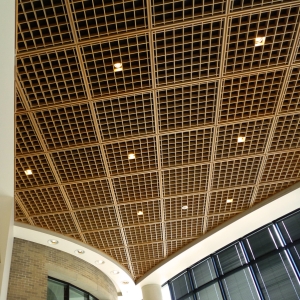

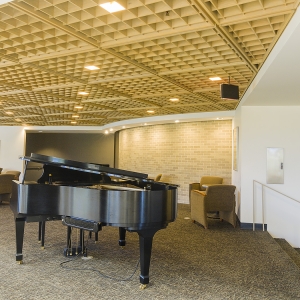

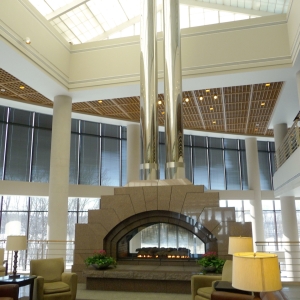

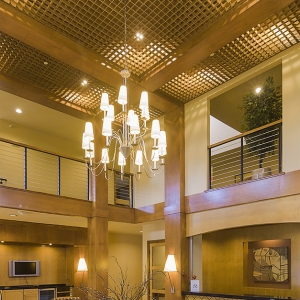

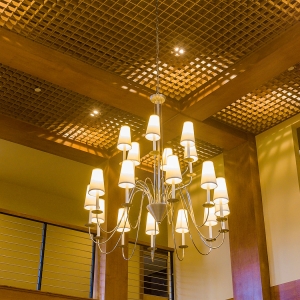

This unique pre-assembled, open-cell type of ceiling system conceals the clutter of sprinklers, ducts, lights, and raceways while permitting the function of those mechanical systems through the open louver design, with 100% accessibility. The Cube system is an excellent option for irregularly-shaped ceiling areas that have radiused or angled perimeters. Available styles are Monolithic or Tegular (with simple drop-in installation). Cube features on-center cell sizes of 3″, 4″, 6″, 8″, or 12″ to fit any design or application. The solid wood blade widths of 3/8″ or 3/4″ are available, with 2″ blade height.

Features

Available in solid wood blades in the species shown below*
Available in Monolithic or Tegular (for easy installation in 15/16″ HD T-Bar ceiling grid)
Available pre-assembled on-center cell sizes are 3″, 4″, 6″, 8″, or 12″
Matching adhesive veneer strips are available for facing T-Bar grid (in the field)
FSC available
May contribute to LEED® projects
FINISHES: Clear lacquer top coat, Class-A varnish, or stained to match

2′ x 2′ or 4′ x 4′ (nominal) flush or tegular lay-in panels

Monolithic suspension system or 15/16″ HD T-Bar ceiling grid

Available options

Monolithic

Monolithic

Cube Monolithic
• 100% accessibility
• Monolithic appearance eliminates cost and labor of installing T-bar grid
• Field cut to fit the installation

Resources

Tegular Lay In

Tegular Lay In

Cube Tegular
• Lays in to HD 15/16” T-bar grid for 100% accessibility
• Requires full panel sizes in cloud applications
• Vertical trim conceals grid in cloud applications
• Wall to wall installations can be field cut to fit irregular installations

Resources

Standard Details

Cube – Tegular_DetailBook

Testing

Coming Soon

Wood Species

Ash

MAPLE

BEECH

WALNUT

Red Oak

White Oak

Hickory

CHERRY

NATURAL BAMBOO

CARAMELIZED BAMBOO
