BEAM

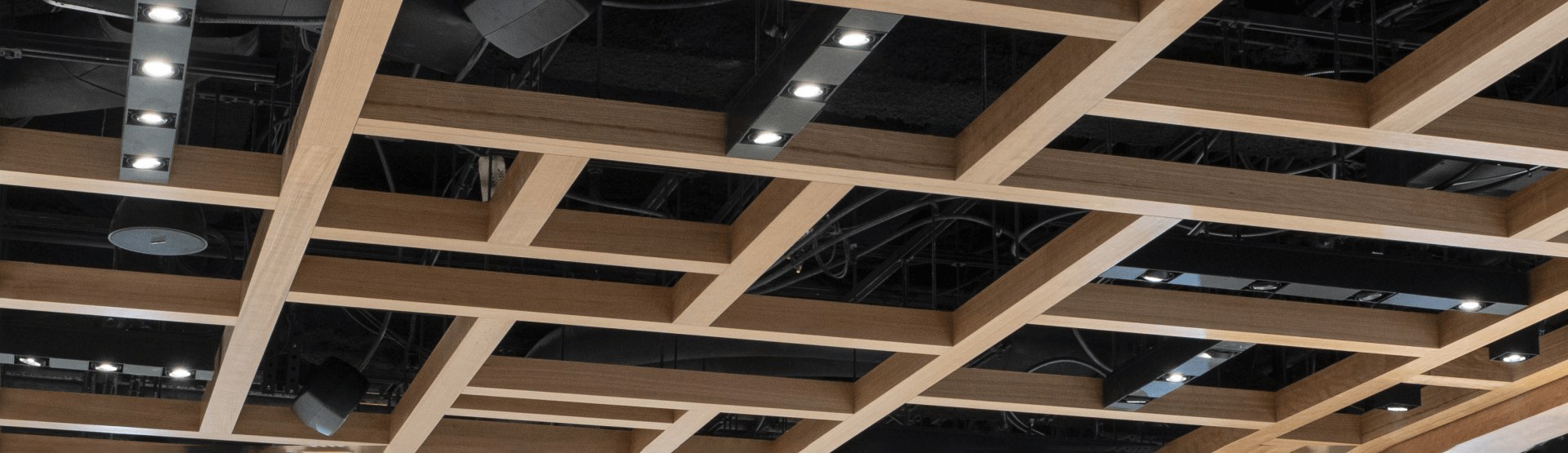

Beam Decorative (Non-Structural) Ceiling Beam System

ASI’s Beam ceiling system provide a simple and inexpensive alternative for improving the design of a room with the appearance of solid wood, but without the associated weight and cost. The system is designed to fit together based on project requirements, and custom widths, lengths, and heights are available. Beams may also be used alongside other ceiling systems. Veneer and grain matching as well as end-matching are available options.

Features

Available in wood veneer in the species shown below*

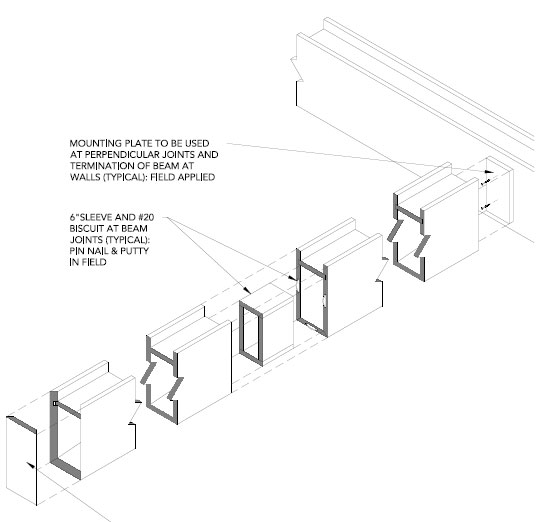

Blocked beam ends
Sleeved beam ends
Finished beam ends
Veneer end matching available
FSC available
May contribute to LEED® projects
FINISHES: Clear lacquer top coat or stained to match

Available core materials are:
Class A Fire Rated Particle Board
Class A Fire Rated MDF

Minimum 4″ width; maximum 18″ height;
maximum 10′ length (per section);
three beam faces not to exceed 48″ total

Monolithic suspension system or 15/16″ HD T-Bar ceiling grid

Available options

Miter fold

Beam

• Custom sizes available
• Easy install
• Lightweight and more cost effective than solid wood
• Adds structural appearance to décor

Resources

CSI Spec

Beams.docx

Installation Instructions

Beam_Installation Instructions_051118

Standard Details

Beam DetailBook.pdf

Wood Species

Ash

MAPLE

BEECH

WALNUT

Red Oak

White Oak

Hickory

CHERRY

NATURAL BAMBOO

CARAMELIZED BAMBOO
